Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSS20S71F6MOD IPM 6-PAC 20A 600V DIP |
6,180 |
|
Datasheet |
- | 38-PowerDIP Module (1.413", 35.90mm) | Tube | Discontinued | IGBT | 3 Phase | 600 V | 2500Vrms | - | 20 A | - | Through Hole |
|
FAM65CR51DZ2POWER MODULE |
5,629 |
|
Datasheet |
- | 12-SSIP Exposed Pad, Formed Leads | Tube | Active | MOSFET | 2 Independent | 650 V | 5000Vrms | - | 33 A | - | Through Hole |
|
PS219B4-ASMOD DIPIPM 15A 600V SUPER MINI |
7,603 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 15 A | - | Through Hole |
|
|
PS21963-4SMOD IPM 600V 10A SUPERMINIDIP |
3,131 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 10 A | - | Through Hole |
|
FSBB30CH60BMODULE SPM 600V 30A 3PH SPM27-EC |
6,845 |
|
Datasheet |
Motion-SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|

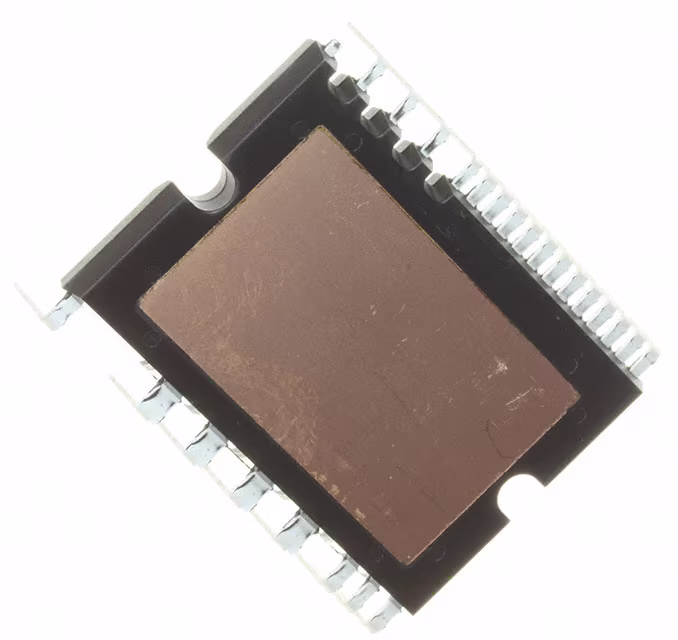

PS21964-4MOD IPM 600V 15A SUPERMINIDIP |
6,831 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.134", 28.80mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 15 A | - | Through Hole |
|
|
PS21964-4AMOD IPM 600V 15A SUPER MINI DIP |
3,622 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.134", 28.80mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 15 A | - | Through Hole |
|
STGIPS40W60L1MODULE IPM SLLIMM SDIP-22L |
3,618 |
|
Datasheet |
SLLIMM™ | 22-PowerDIP Module (0.993", 25.23mm) | Tube | Obsolete | IGBT | 1 Phase | 600 V | 2500Vrms | - | 40 A | - | Through Hole |
|
PSS30S92F6-AGMOD IPM 6-PAC 30A 600V DIP |
5,226 |
|
Datasheet |
- | 25-PowerDIP Module (1.134", 28.80mm) | Tube | Discontinued | IGBT | 3 Phase | 600 V | 1500Vrms | - | 30 A | - | Through Hole |
|
|
PS21564-PMOD IPM 600V 15A MINI DIP |
5,274 |
|
Datasheet |
Intellimod™ | 35-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 15 A | - | Through Hole |
|
|
PS21564-SPMOD IPM 600V 15A MINI DIP |
8,691 |
|
Datasheet |
Intellimod™ | 37-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 15 A | - | Through Hole |
|
|
PS21353-GPMOD IPM 600V 10A MINI-DIP |
9,637 |
|
Datasheet |
Intellimod™ | 35-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 10 A | - | Through Hole |
|
GA10SICP12-247SIC CO-PACK SJT/RECT 10A 1.2KV |
4,111 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | - | - | 1.2 kV | - | - | 10 A | - | Through Hole |
|
FSBB20CH60DMODULE SPM 600V 20A SPMCC |
5,646 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase Inverter | 600 V | 2500Vrms | - | 20 A | - | Through Hole |
|
|
FSBB15CH60DMODULE SPM 600KV 15A 27PWRDIP |
5,895 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase Inverter | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
PSS35S92F6-AGMOD IPM 6-PAC 35A 600V DIP |
2,540 |
|
Datasheet |
- | 25-PowerDIP Module (1.134", 28.80mm) | Tray | Discontinued | IGBT | 3 Phase | 600 V | 1500Vrms | - | 35 A | - | Through Hole |
|
|
PSS05SA2FTMOD IPM 6-PAC 5A 1200V DIP |
9,013 |
|
Datasheet |
- | 42-PowerDip Module (1.404", 35.67mm) | Tray | Discontinued | IGBT | 3 Phase | 1.2 kV | 2500Vrms | - | 5 A | - | Through Hole |
|
PSS30S71F6MOD IPM 6-PAC 30A 600V DIP |
3,447 |
|
Datasheet |
- | 38-PowerDIP Module (1.413", 35.90mm) | Tube | Discontinued | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|
PS21965-4MOD IPM 600V 20A SUPERMINIDIP |
4,198 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.134", 28.80mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 20 A | - | Through Hole |
|
|
PS21965-4AMOD IPM 600V 20A SUPRMINIDIP |
8,649 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.134", 28.80mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 20 A | - | Through Hole |
