Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAM65CR51AXZ1APM16 SF3 FRFET & SIC DIODE 51MO |
3,794 |
|
Datasheet |
- | 12-SIP Exposed Pad, Formed Leads | Tube | Discontinued | MOSFET | 2 Independent | 650 V | - | Automotive | 64 A | AEC-Q101 | Through Hole |
|
|
PSS25SA2FTMOD IPM 6-PAC 25A 1200V DIP |
3,951 |
|
Datasheet |
- | 42-PowerDip Module (1.404", 35.67mm) | Tray | Discontinued | IGBT | 3 Phase | 1.2 kV | 2500Vrms | - | 25 A | - | Through Hole |
|
|
NXV65HR51DZ2NXV65HR51DZ2 |
6,372 |
|
Datasheet |
- | 16-SSIP Exposed Pad, Formed Leads | Bulk | Active | MOSFET | Half Bridge | 650 V | - | Automotive | 33 A | AEC-Q101 | Through Hole |
|
|
PS22052MOD IPM 1200V 5A DIP |
2,006 |
|
Datasheet |
Intellimod™ | 28-PowerDIP Module (1.882", 47.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 5 A | - | Through Hole |
|

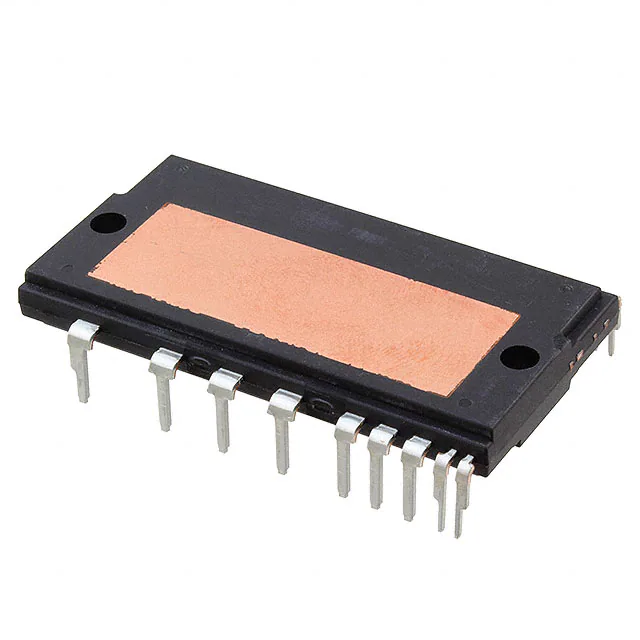

FSAM50SM60AMODULE SPM 600V 50A S32CA |
4,915 |
|
Datasheet |
SPM® 2 | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase Inverter | 600 V | 2500Vrms | - | 50 A | - | Through Hole |
|

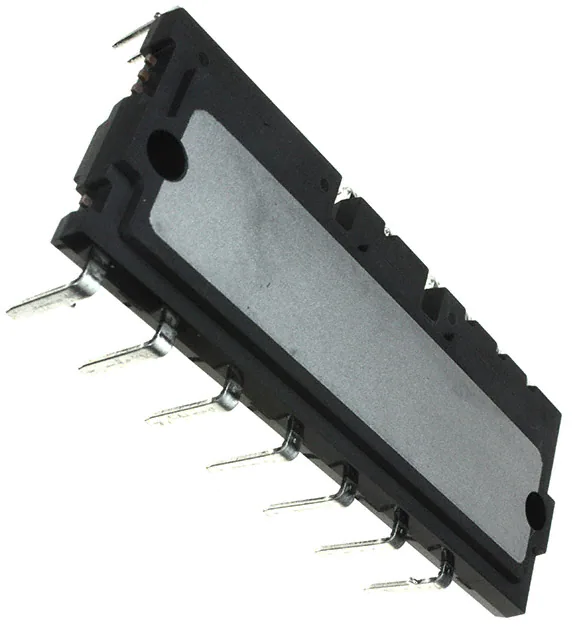

PS22A72MOD IPM 1200V 5A LARGE DIP |
2,227 |
|
Datasheet |
DIPIPM™ | 42-PowerDip Module (1.404", 35.67mm) | Bulk | Active | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 5 A | - | Through Hole |
|
|
PS22053MOD IPM 1200V 10A DIP |
8,560 |
|
Datasheet |
Intellimod™ | 28-PowerDIP Module (1.882", 47.80mm) | Bulk | Discontinued | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 10 A | - | Through Hole |
|
|
PSS35SA2FTMOD IPM 6-PAC 35A 1200V DIP |
2,052 |
|
Datasheet |
- | 42-PowerDip Module (1.404", 35.67mm) | Tray | Discontinued | IGBT | 3 Phase | 1.2 kV | 2500Vrms | - | 35 A | - | Through Hole |
|
PS22A74MOD IPM 1200V 15A LARGE DIP |
6,584 |
|
Datasheet |
DIPIPM™ | 42-PowerDip Module (1.404", 35.67mm) | Bulk | Discontinued | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 15 A | - | Through Hole |
|
FNA23060MODULE SPM 600V 30A 34PWRDIP |
8,761 |
|
Datasheet |
Motion SPM® 2 | 34-PowerDIP Module (1.480", 37.60mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|
|
EMP15P12DPOWER MODULE 3PHASE 15A 1200V |
6,057 |
|
Datasheet |
- | Power Module | - | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 30 A | - | Chassis Mount |
|
|
PS22054MOD IPM 1200V 15A DIP |
2,000 |
|
Datasheet |
Intellimod™ | 28-PowerDIP Module (1.882", 47.80mm) | Bulk | Discontinued | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 15 A | - | Through Hole |
|
|
PS22056MOD IPM 1200V 25A DIP |
5,829 |
|
Datasheet |
Intellimod™ | 28-PowerDIP Module (1.882", 47.80mm) | Bulk | Discontinued | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 25 A | - | Through Hole |
|
|
PSS50SA2FTMOD IPM 6-PAC 50A 1200V DIP |
5,146 |
|
Datasheet |
- | 42-PowerDip Module (1.404", 35.67mm) | Tray | Discontinued | IGBT | 3 Phase | 1.2 kV | 2500Vrms | - | 50 A | - | Through Hole |
|

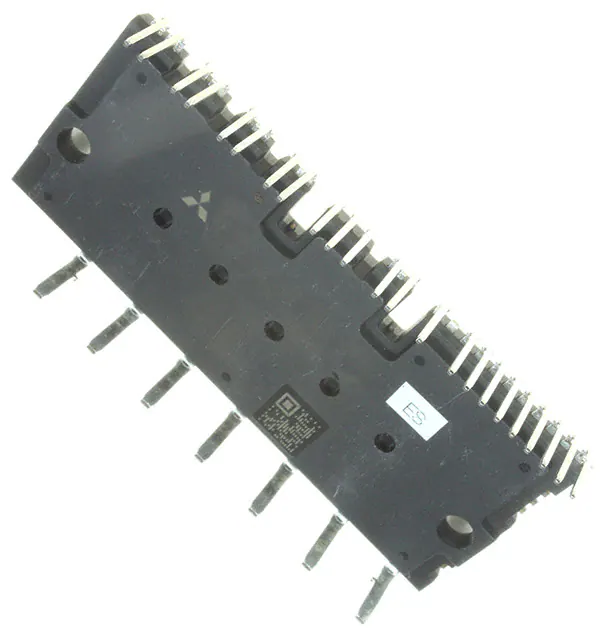

PS22A76MOD IPM 1200V 25A LARGE DIP |
6,242 |
|
Datasheet |
DIPIPM™ | 42-PowerDip Module (1.404", 35.67mm) | Bulk | Active | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 25 A | - | Through Hole |
|

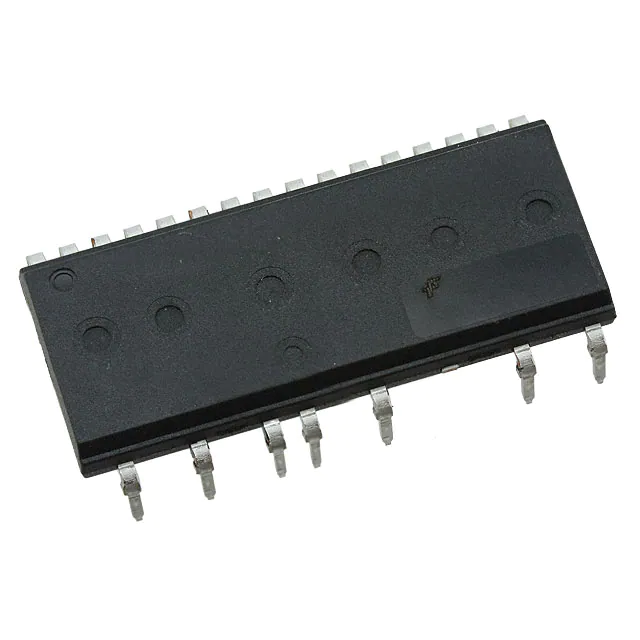

FNA27560MODULE SPM 600V 75A 34PWRDIP |
5,774 |
|
Datasheet |
Motion SPM® 2 | 34-PowerDIP Module (1.480", 37.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 75 A | - | Through Hole |
|

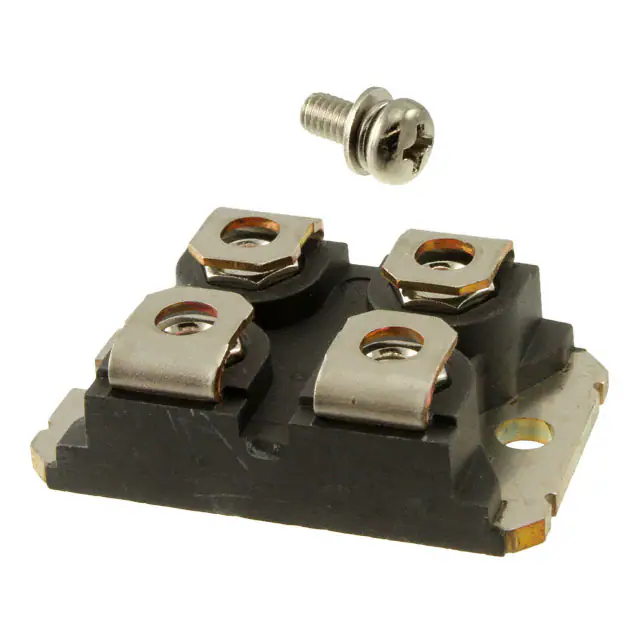

GA50SICP12-227SIC CO-PACK SJT/RECT 50A 1.2KV |
8,145 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | - | 1.2 kV | - | - | 50 A | - | Chassis Mount |
|
|
VLA539-01ACCESSORY- GATE DRIVER |
5,403 |
|
Datasheet |
- | 30-SIP Module, 21 Leads | Bulk | Discontinued | IGBT | - | 15 V | 4000Vrms | - | - | - | Through Hole |
|
|
PM30RSF060MOD IPM 7PAC 600V 30A |
8,582 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Chassis Mount |
|
|
IXIDM1401ISOLATED GATE DRIVER |
8,699 |
|
Datasheet |
- | Module | Tray | Discontinued | IGBT | Half Bridge | 15 V | 4000Vrms | - | 10 A | - | Surface Mount |
