Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSBB15CH60BMODULE SPM 600V 15A 3PH SPM27CC |
3,012 |
|
Datasheet |
Motion-SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
FSAM10SM60ASMART POWER MODULE 10A SPM32-AA |
3,171 |
|
Datasheet |
SPM® | 32-PowerDIP Module (1.370", 34.80mm) | - | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 10 A | - | Through Hole |
|
|
LMG3522R030QRQSRQ1AUTOMOTIVE 650-V 30-M GAN FET WI |
4,821 |
|
Datasheet |
- | 52-VQFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET | Half Bridge Inverter | 650 V | - | Automotive | 55 A | AEC-Q100 | Surface Mount, Wettable Flank |
|
STGIPS30C60IGBT IPM MODULE 30A 600V SDIP-25 |
4,591 |
|
Datasheet |
SLLIMM™ | 25-PowerDIP Module (0.993", 25.23mm) | Tray | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 30 A | - | Through Hole |
|
|
STGIPS30C60-HMOD IPM SLLIMM 30A 600V 25SDIP |
6,491 |
|
Datasheet |
SLLIMM™ | 25-PowerDIP Module (0.993", 25.23mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|
|
STGIPS30C60T-HMOD IPM SLLIMM 30A 600V 25SDIP |
8,686 |
|
Datasheet |
SLLIMM™ | 25-PowerDIP Module (0.993", 25.23mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|
FSBM10SH60IC SMART POWER MOD 10A SPM32-AA |
5,956 |
|
Datasheet |
SPM® | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 10 A | - | Through Hole |
|
|
PS21963-4EMOD IPM 600V 8A SUPERMINIDIP |
9,722 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 8 A | - | Through Hole |
|
|
STGIB30M60TS-LZDISCRETE |
4,741 |
|
Datasheet |
SLLIMM - 2nd | 26-PowerDIP Module (1.146", 29.10mm) | Bulk | Active | IGBT | 3 Phase Inverter | 600 V | 1600Vrms | - | 35 A | - | Through Hole |
|
|
STGIPS15C60MOD IGBT SLLIMM 15A 600V 25SDIP |
2,487 |
|
Datasheet |
SLLIMM™ | 25-PowerDIP Module (0.993", 25.23mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|

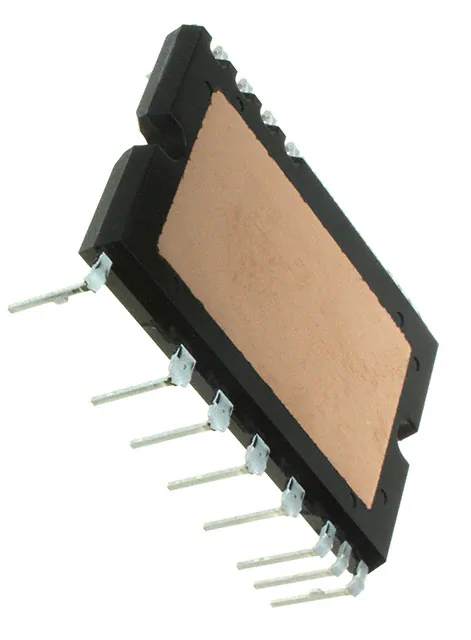

PS21963-4MOD IPM 600V 10A SUPERMINIDIP |
8,543 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.134", 28.80mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 10 A | - | Through Hole |
|
|
PS21563-PMOD IPM 600V 10A MINI DIP |
2,489 |
|
Datasheet |
Intellimod™ | 35-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 10 A | - | Through Hole |
|
PS219B2-ASMOD DIPIPM 5A 600V SUPER MINI |
8,818 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 5 A | - | Through Hole |
|
|
FSAM15SL60SMART POWER MODULE 15A SPM32-AA |
2,623 |
|
Datasheet |
SPM® | 32-PowerDIP Module (1.370", 34.80mm) | - | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
PSS20S92F6-AGMOD IPM 6-PAC 20A 600V DIP |
8,663 |
|
Datasheet |
- | 25-PowerDIP Module (1.134", 28.80mm) | Tray | Discontinued | IGBT | 3 Phase | 600 V | 1500Vrms | - | 20 A | - | Through Hole |
|
|
FSBB15CH60CMODULE SPM 600V 15A 27PWRDIP |
9,448 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
|
STGIB30M60TS-ESLLIMM 2ND SERIES IPM, 3-PHASE I |
3,249 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (1.327", 33.70mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 35 A | - | Through Hole |
|
|
NFAM3065L4BLSPM31, 650 V, 30A |
9,901 |
|
Datasheet |
- | 39-PowerDIP Module (1.413", 35.90mm), 29 Leads | Tube | Active | IGBT | 3 Phase Inverter | 650 V | 2500Vrms | - | 30 A | - | Through Hole |
|
PS219B3-ASMOD DIPIPM 10A 600V SUPER MINI |
5,759 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 10 A | - | Through Hole |
|
|
PS21352-GPMOD IPM 600V 5A MINI DIP |
5,091 |
|
Datasheet |
Intellimod™ | 35-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 5 A | - | Through Hole |
