Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
59M18-02A20NSWITCH ROTARY 20POS 250MA 115V |
1,639 |
|
Datasheet |
59 | Bulk | Active | 20 | Continuous | 1 | SP20T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 18° | Gold | Silver Alloy | Solder Lug | - | 31.72mm |
|
|
59M18-02-1-20N-CSWITCH ROTARY 20POS |
1,437 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
09MS45-08-1-08NSWITCH ROTARY 8POS 250MA 115V |
1,798 |
|
Datasheet |
09 | Bulk | Active | 8 | Continuous | 1 | SP8T | Non-Shorting (BBM) | 8 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 45° | Gold | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 78.38mm |
|
RM106772BCBROTARY |
189 |
|
Datasheet |
RM | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | Through Hole | 45° | Gold | Brass | PC Pin | - | 7.37mm |
|
|
6KF001A-3S10R4-0CODED ROTARY SW, 3*3 THT, 10POS, |
3,000 |
|
Datasheet |
- | Tube | Active | 10 | - | - | BCD | - | - | - | - | - | Flatted | - | Panel Mount, Through Hole | - | Gold | Copper Alloy | PC Pin | - | - |
|
|
6KF001B-3S10R5-0CODED ROTARY SW, 3*3 SMD, 10POS, |
1,700 |
|
Datasheet |
- | Tube | Active | 10 | - | - | BCD | - | - | - | - | - | Flatted | - | Surface Mount | - | Gold | Copper Alloy | Gull Wing | - | - |
|
RTAP31S12M25NSROTARY SWITCH |
105 |
|
Datasheet |
RTA | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | Panel Mount, Through Hole | 30° | Silver | Brass | PC Pin | - | 12.60mm |
|
56D36-01-1-AJNSWITCH ROTARY 2-10POS 200MA 115V |
4,822 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
56SD36-01-1-AJSSWITCH ROTARY 2-10POS 200MA 115V |
3,183 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Shorting (MBB) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Silver | Brass | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
50DP45-01-1-AJNSWITCH ROTARY 2-8POS 150MA 115V |
2,367 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 8 | Adjustable | 1 | SP8T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 45° | Gold | - | PC Pin | - | 13.64mm |
|
50DP90-01-1-AJNSWITCH ROTARY 2-4POS 150MA 115V |
1,620 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | SP4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 90° | Gold | - | PC Pin | - | 13.64mm |
|
71BD30-01-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
1,032 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 19.33mm |
|

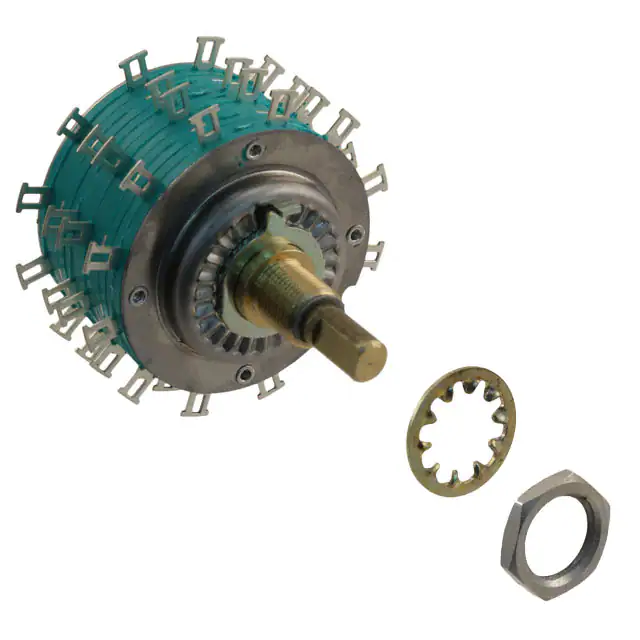

C7D0224N-CSWITCH ROTARY 24POS 500MA 125V |
2,823 |
|
Datasheet |
C7 | Bulk | Active | 24 | Continuous | 1 | SP24T | Non-Shorting (BBM) | 2 | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | Panel Mount | 15° | Silver | Brass | Solder Lug | - | 32.49mm |
|
44D30-04-1-AJNSWITCH ROTARY 2-12POS 1A 115V |
3,190 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 4 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 52.40mm |
|
312-12ESWITCH ROTARY 12POS 30A 300V |
3,125 |
|
Datasheet |
312 | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 57.20mm |
|
A10415RNCQSWITCH ROTARY 4POS 2.5A 125V |
3,341 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
RM101772BCBSWITCH ROTARY 2POS 500MA 24V |
4,566 |
|
Datasheet |
RM | Tray | Active | 2 | Fixed | 1 | SPST | Non-Shorting (BBM) | 1 | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | Through Hole | 45° | Gold | Brass | PC Pin | - | 7.37mm |
|
RM105002BCBSWITCH ROTARY 5POS 500MA 24V |
4,698 |
|
Datasheet |
RM | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | Through Hole | 45° | Gold | Brass | PC Pin | - | 7.37mm |
|
KC34A30.001NPSSWITCH ROTARY 4POS 350MA 125V |
1,718 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | 1 | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | Panel Mount, Through Hole | 30° | Silver | Copper Alloy | PC Pin | - | 14.20mm |
|
H20407RR01QSWITCH ROTARY 4POS 12A 125V |
4,657 |
|
Datasheet |
H | Bulk | Active | 4 | Fixed | 2 | DP4T, Adjacent Contact | Non-Shorting (BBM) | 1 | 12A (AC), 1A (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 7.29mm | Panel Mount | 45° | Silver | Copper | Solder Lug | - | 14.61mm |
