| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A10405RNZQSWITCH ROTARY 4POS 2.5A 125V |
1,114 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A12405RNZQSWITCH ROTARY 4POS 2.5A 125V |
3,173 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 90° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A10605RNZQSWITCH ROTARY 6POS 2.5A 125V |
3,329 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A10815RNZQSWITCH ROTARY 8POS 2.5A 125V |
1,585 |
|
Datasheet |
A | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A10905RNCQSWITCH ROTARY 9POS 2.5A 125V |
3,958 |
|
Datasheet |
A | Tray | Active | 9 | Fixed | 1 | SP9T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A20303RNZQSWITCH ROTARY 3POS 2.5A 125V |
3,767 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|

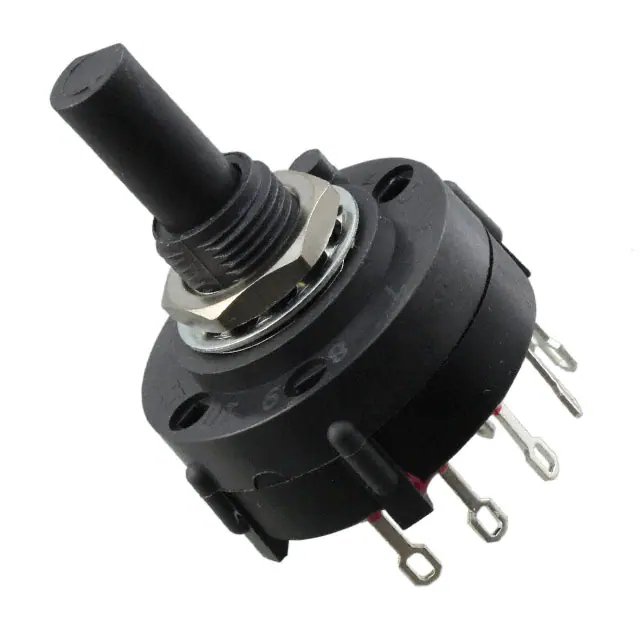

A10605RNZQKSWITCH ROTARY 6POS 2.5A 125V |
1,335 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|
A11015RNCQSWITCH ROTARY 10POS 2.5A 125V |
1,594 |
|
Datasheet |
A | Tray | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A10705RNZQFSWITCH ROTARY 7POS 2.5A 125V |
1,895 |
|
Datasheet |
A | Tray | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | Splashproof Bushing Seal | 20.83mm |
|
A11215RNZQSWITCH ROTARY 12POS 2.5A 125V |
3,097 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A20405RNCQSWITCH ROTARY 4POS 2.5A 125V |
3,001 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A11003RNCQSWITCH ROTARY 10POS 2.5A 125V |
3,141 |
|
Datasheet |
A | Tray | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A20305RNZQSWITCH ROTARY 3POS 2.5A 125V |
3,068 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A11005RNCQSWITCH ROTARY 10POS 2.5A 125V |
3,466 |
|
Datasheet |
A | Tray | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
C5P0403N-ASWITCH ROTARY 2-3POS 1A 125V |
1,226 |
|
Datasheet |
C5 | Bulk | Active | 2 ~ 3 | Adjustable | 4 | 4P3T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | Panel Mount | 30° | Silver | Brass | Solder Lug | Sealed | 20.07mm |
|
A11203RNZQSWITCH ROTARY 12POS 2.5A 125V |
4,143 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
|
A11205RNZQSWITCH ROTARY 12POS 2.5A 125V |
2,445 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A30403RNZQSWITCH ROTARY 4POS 2.5A 125V |
1,895 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A30405RNZQSWITCH ROTARY 4POS 2.5A 125V |
2,287 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A11205RNCQESWITCH ROTARY 12POS 2.5A 125V |
2,913 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | Epoxy Sealed Terminals | 14.48mm |
