| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A30305RNZQKSWITCH ROTARY 3POS 2.5A 125V |
3,384 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 3 | 3P3T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|
NR01103ANG13-1CSWITCH ROTARY 3POS 0.4VA 28V |
2,786 |
|
Datasheet |
NR01 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | Through Hole | 45° | Gold | Beryllium Copper | PC Pin | - | 10.50mm |
|
|
NR01104ANG13-1CSWITCH ROTARY 4POS 0.4VA 28V |
4,744 |
|
Datasheet |
NR01 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | Through Hole | 45° | Gold | Beryllium Copper | PC Pin | - | 10.50mm |
|
NR01104ANG13-2ASWITCH ROTARY 4POS 0.4VA 28V |
4,938 |
|
Datasheet |
NR01 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | Through Hole | 45° | Gold | Beryllium Copper | PC Pin | - | 10.50mm |
|
481RV12172100SWITCH ROTARY 8POS 100MA 30V |
1,287 |
|
Datasheet |
WS-RPTL | Bulk | Active | 8 | Fixed | 1 | SP8T | Shorting (MBB) | 1 | 100mA (DC) | - | 30 V | Knob | 9.55mm | Through Hole | 45° | Silver | Copper Alloy | PC Pin | LED, Pushbutton Switch | - |
|

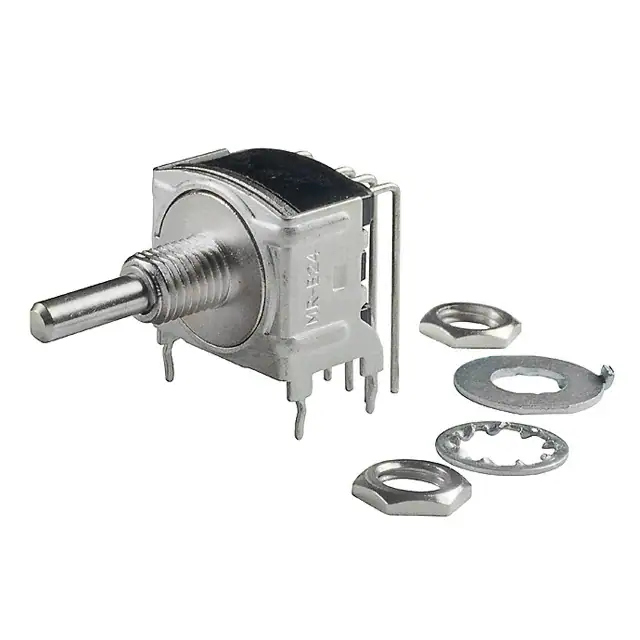

MRB24HSWITCH ROTARY 3POS 0.4VA 28V |
2,664 |
|
Datasheet |
MRB | Box | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 0.4VA (AC/DC) | 28 V | 28 V | Flatted (3.17mm Dia) | 10.00mm | Panel Mount, Through Hole, Right Angle | 45° | Gold | Beryllium Copper | PC Pin | Sealed - Fully | 15.10mm |
|

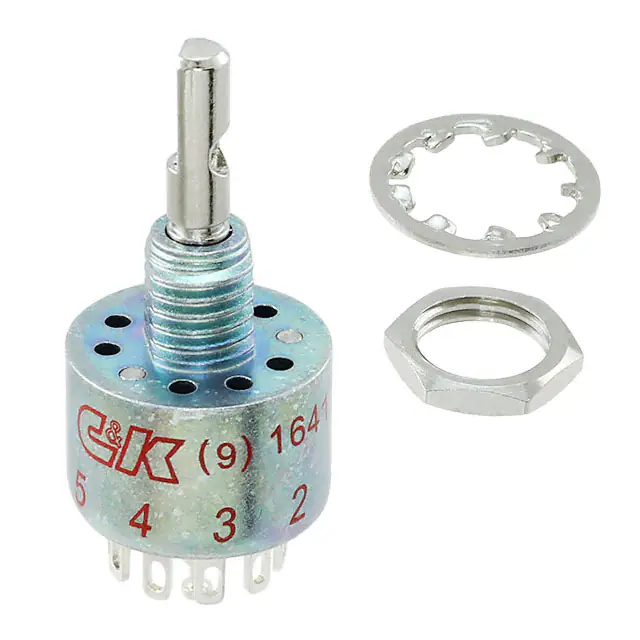

MA04L1NZQDSWITCH ROTARY 4POS 250MA 125V |
4,921 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | Panel Mount | 36° | Silver | Copper Alloy | Solder Lug | - | 14.86mm |
|
56D36-01-2-AJNSWITCH ROTARY 2-5POS 200MA 115V |
4,381 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
56SD30-01-1-AJNSWITCH ROTARY 2-12POS 200MA 115V |
1,297 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Brass | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
MD06L1NCQDSWITCH ROTARY 6POS 250MA 125V |
2,371 |
|
Datasheet |
M | Bulk | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | Panel Mount, Through Hole | 30° | Silver | Copper Alloy | PC Pin | - | 10.42mm |
|
56D30-01-2-AJNSWITCH ROTARY 2-6POS 200MA 115V |
2,050 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 12.19mm |
|
MC00L1NCQFSWITCH ROTARY 12POS 250MA 125V |
2,635 |
|
Datasheet |
M | Tray | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | Panel Mount, Through Hole | 30° | Silver | Copper Alloy | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
C3P0212N-ASWITCH ROTARY 2-12POS 100MA 125V |
3,836 |
|
Datasheet |
C3 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 2 | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | Panel Mount, Through Hole, Right Angle | 30° | Silver | Brass | PC Pin | - | 30.00mm |
|
50D36-01-1-AJNSWITCH ROTARY 2-10POS 150MA 115V |
1,586 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Gold | - | Solder Lug | - | 18.77mm |
|
50D60-01-1-AJNSWITCH ROTARY 2-6POS 150MA 115V |
3,019 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | SP6T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 60° | Gold | - | Solder Lug | - | 18.77mm |
|
51D30-01-1-AJNSWITCH ROTARY 2-12POS 150MA 115V |
3,804 |
|
Datasheet |
51 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | - | Solder Lug | - | 18.77mm |
|

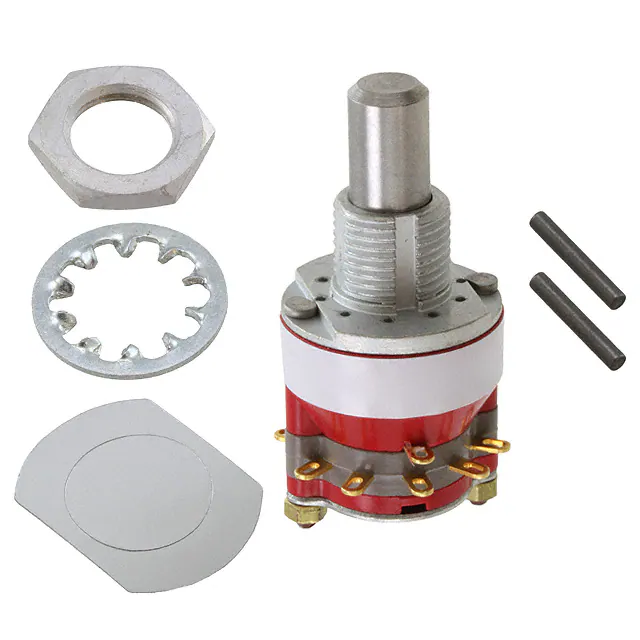

71BD36-01-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
4,046 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 19.33mm |
|
50S45-01-2-03NSWITCH ROTARY 3POS 150MA 115V |
2,964 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 45° | Gold | - | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
503265-1-03NSWITCH ROTARY 3POS 150MA 115V |
2,525 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | - | 9.53mm | Panel Mount | 36° | Gold | - | Solder Lug | - | 18.77mm |
|
MA10S1NZGFSWITCH ROTARY 10POS 250MA 125V |
1,744 |
|
Datasheet |
M | Tray | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | Panel Mount | 36° | Gold | Copper Alloy | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
