Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71A30-03-1-08SSWITCH ROTARY 8POS 250MA 115V |
2,739 |
|
Datasheet |
71 | Bulk | Active | 8 | Fixed | 1 | SP8T | Shorting (MBB) | 3 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 30.40mm |
|
|
MRA206-BFSWITCH ROTARY 2-6POS 250MA 125V |
4,762 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 1 | 250mA (AC) | 125 V | - | Knob | 14.30mm | Panel Mount, Through Hole | 30° | Silver | Copper | PC Pin | Process Sealed | 17.00mm |
|
|
MRA206-BCSWITCH ROTARY 2-6POS 250MA 125V |
2,592 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 1 | 250mA (AC) | 125 V | - | Knob | 14.30mm | Panel Mount, Through Hole | 30° | Silver | Copper | PC Pin | Process Sealed | 17.00mm |
|
|
MRA206-BBSWITCH ROTARY 2-6POS 250MA 125V |
1,677 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 1 | 250mA (AC) | 125 V | - | Knob | 14.30mm | Panel Mount, Through Hole | 30° | Silver | Copper | PC Pin | Process Sealed | 17.00mm |
|
|
24001-08NSWITCH ROTARY 8POS 1A 115V |
3,609 |
|
Datasheet |
24 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | Panel Mount | 36° | Silver | Phosphor Bronze | Solder Lug | - | 14.68mm |
|
|
50KM60-01-1-03NSWITCH ROTARY 3POS 150MA 115V |
114 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 60° | Gold | - | Solder Lug | - | 18.77mm |
|
|
71BF36-04-1-10N-CSWITCH ROTARY 10POS 250MA 115V |
4,012 |
|
Datasheet |
71 | Bulk | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | 4 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 36° | - | Silver Alloy | PC Pin | - | 35.94mm |
|
|
77SP36-01-2-03NSWITCH ROTARY 3POS 50MA 115V |
559 |
|
Datasheet |
77 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
71AF30-04-2-04NSWITCH ROTARY 4POS 250MA 115V |
4,237 |
|
Datasheet |
71 | Bulk | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | 4 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 35.94mm |
|
|
HS16-3SWITCH ROTARY 2-11POS 12A 125V |
4,147 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 3 | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 51.50mm |
|
|
44A45-01-1-08NSWITCH ROTARY 8POS 5A 115V |
4,928 |
|
Datasheet |
44 | Bulk | Active | 8 | Continuous | 1 | SP8T | Non-Shorting (BBM) | 1 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
19101-12ULSWITCH ROTARY 12POS 15A 120V |
3,026 |
|
Datasheet |
19 | Bulk | Active | 12 | Continuous | 1 | SP11T | Non-Shorting (BBM) | 1 | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver Alloy | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|
|
19101-09ULSWITCH ROTARY 9POS 15A 120V |
1,688 |
|
Datasheet |
19 | Bulk | Active | 9 | Fixed | 1 | SP9T | Non-Shorting (BBM) | 1 | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver Alloy | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|
|
71C301107N-1112NCSWITCH ROTARY 7/12POS 250MA 115V |
4,609 |
|
Datasheet |
71 | Bulk | Active | 7, 12 | Fixed, Continuous | 1 | SP7T, SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 35.94mm |
|
|
09A30-01-6-02NSWITCH ROTARY 2POS 250MA 115V |
2,363 |
|
Datasheet |
09 | Bulk | Active | 2 | Fixed | 6 | 6PDT | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|

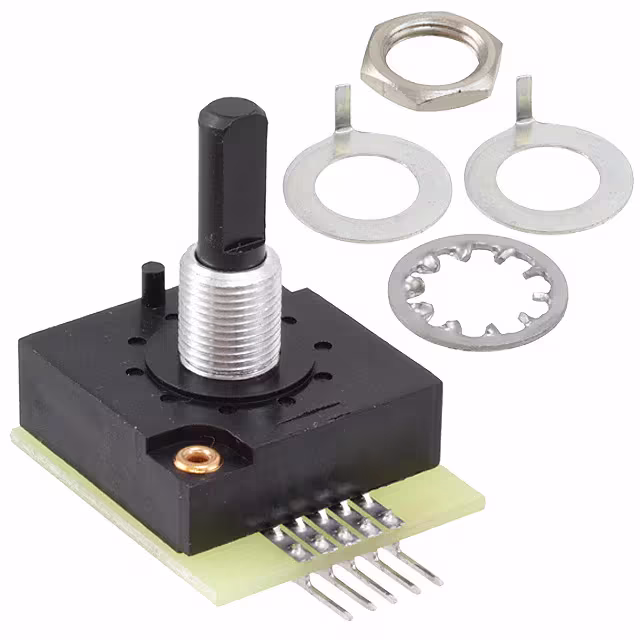

436022-1SWITCH ROTARY 10POS 125MA 115V |
1,753 |
|
Datasheet |
3100 | Bulk | Active | 10 | Continuous | - | BCD Complement | Not Specified | 1 | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | Panel Mount, Through Hole | 36° | Gold | Phosphor Bronze | PC Pin | - | 13.34mm |
|
|
44M45-03-2-03SSWITCH ROTARY 3POS 5A 115V |
4,675 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | DP3T | Shorting (MBB) | 3 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | - | 43.61mm |
|
|
HS16-4SSWITCH ROTARY 2-11POS 12A 125V |
1,118 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Shorting (MBB) | 4 | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 61.50mm |
|
|
HS16-5SWITCH ROTARY 2-11POS 12A 125V |
2,564 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 5 | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 71.50mm |
|
|
09MS60-03-2-03NSWITCH ROTARY 3POS 250MA 115V |
4,466 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 3 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 60° | Gold | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 38.00mm |
