Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B22LPSWITCH TOGGLE DPDT 0.4VA 28V |
4,113 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 12.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B29HBSWITCH TOGGLE DPDT 0.4VA 28V |
1,911 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET125A12-ZSWITCH TOGGLE SPST 25A 125V |
3,546 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPST | 25A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

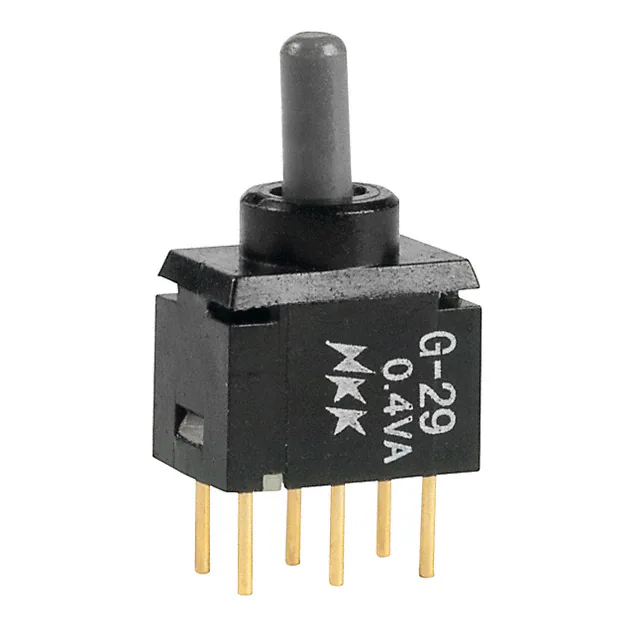

G29APSWITCH TOGGLE DPDT 0.4VA 28V |
1,598 |
|
Datasheet |
G | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
7103MYZQESWITCH TOGGLE SPDT 5A 120V |
3,759 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
G23AHSWITCH TOGGLE DPDT 0.4VA 28V |
1,907 |
|
Datasheet |
G | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

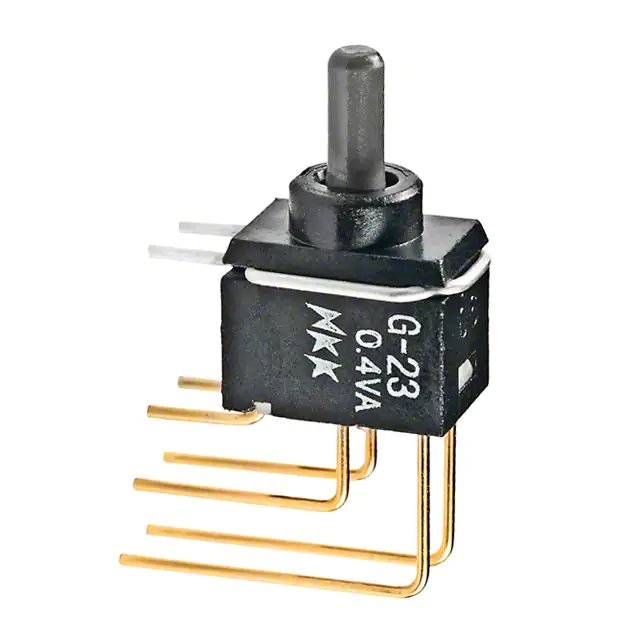

G23AVSWITCH TOGGLE DPDT 0.4VA 28V |
4,815 |
|
Datasheet |
G | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

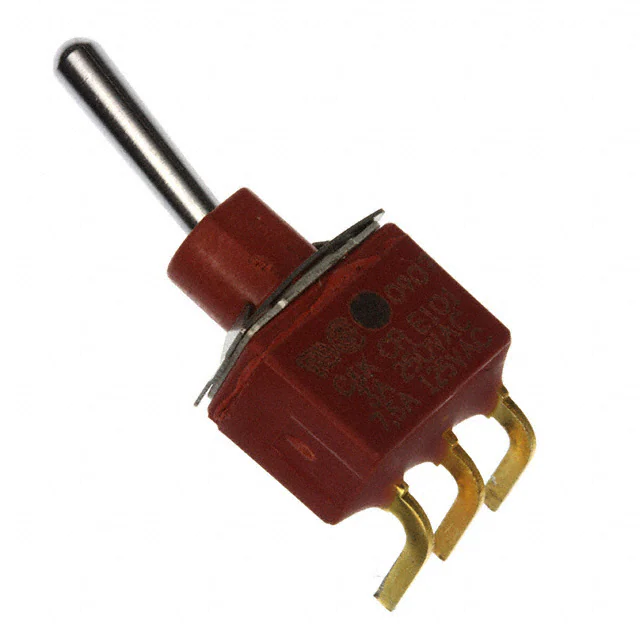

E101SD1AQESWITCH TOGGLE SPDT 7.5A 125V |
3,458 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | SPDT | 7.5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

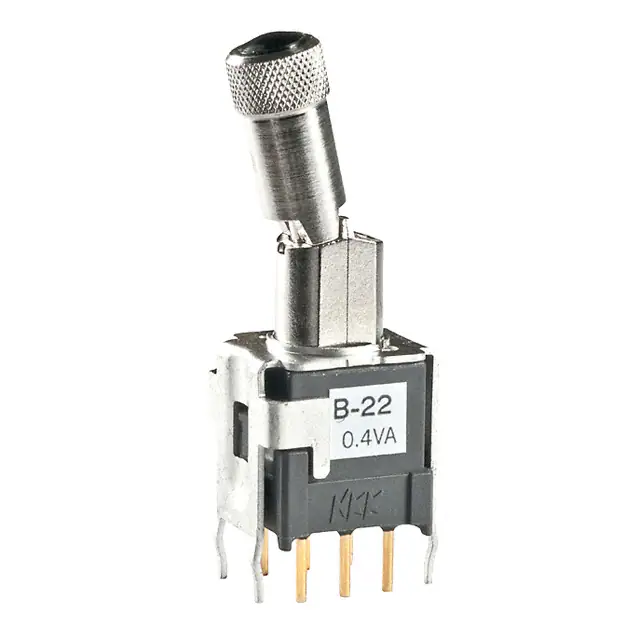

B22LBSWITCH TOGGLE DPDT 0.4VA 28V |
3,027 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 12.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T203P3TCQESWITCH TOGGLE DPDT 2A 120V |
4,357 |
|
Datasheet |
T | Bulk | Active | Panel Mount | DPDT | 2A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 12.45mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101K2ZBESWITCH TOGGLE SPDT 0.4VA 20V |
2,940 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SPYCQESWITCH TOGGLE DPDT 5A 120V |
3,853 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SF36S010000SWITCH TOGGLE SPDT 5A 125V |
3,373 |
|
Datasheet |
SF | Bulk | Active | Panel Mount | SPDT | 5A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.70mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|

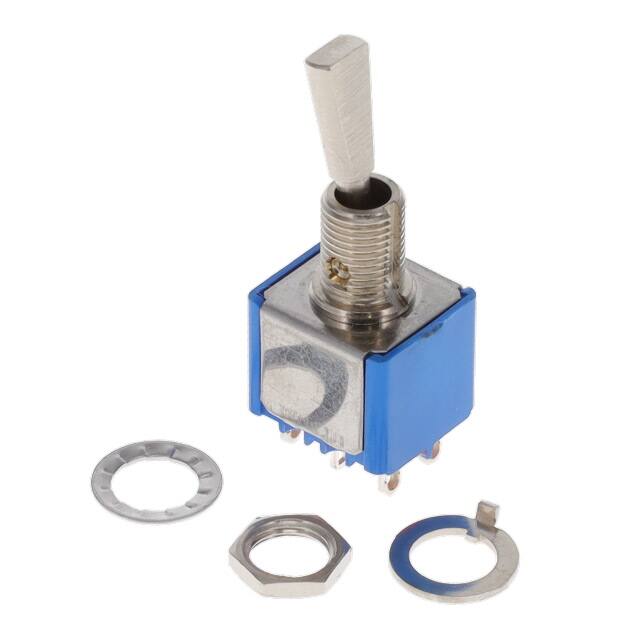

5642AB9SWITCH TOGGLE DPDT 6A 125V |
3,822 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
ET210K12-ZSWITCH TOGGLE DPST 10A 125V |
4,081 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPST | 10A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
7101SYWQESWITCH TOGGLE SPDT 5A 120V |
2,728 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103TCWCBISWITCH TOGGLE SPDT 0.4VA 20V |
3,738 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Potted | -30°C ~ 85°C |
|
TL46P005000SWITCH TOGGLE DPDT 0.4VA 20V |
4,250 |
|
Datasheet |
TL | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SD9AGESWITCH TOGGLE SPDT 5A 120V |
2,207 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

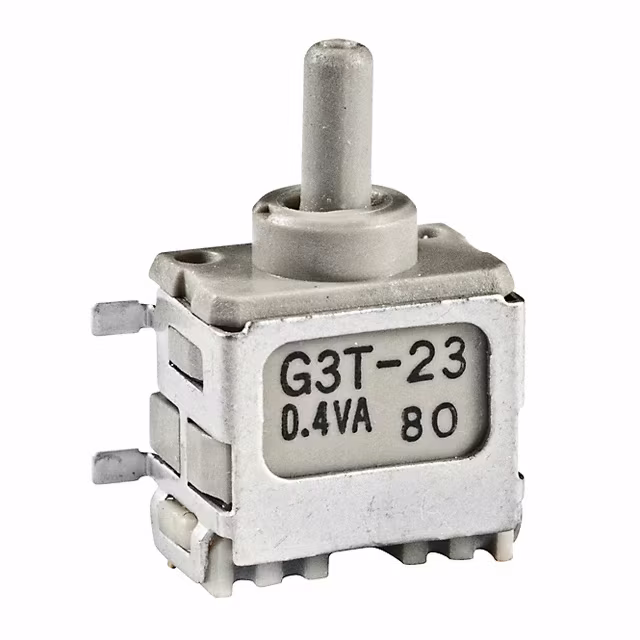

G3T23AHSWITCH TOGGLE DPDT 0.4VA 28V |
4,003 |
|
Datasheet |
G3T | Tray | Active | Surface Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
