Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G13JHCFSWITCH TOGGLE SPDT 0.4VA 28V |
2,845 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.80mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
G13JVCFSWITCH TOGGLE SPDT 0.4VA 28V |
2,817 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.80mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
8E2012C-ZSWITCH TOGGLE DPDT 25MA 20V |
3,326 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | DPDT | 25mA (DC) | - | 20 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
7105SHZQESWITCH TOGGLE SPDT 5A 120V |
1,659 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
.jpg)
|
S303SWITCH TOGGLE SPDT 15A 125V |
1,391 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
ET215N12-ZSWITCH TOGGLE DPDT 15A 125V |
2,461 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
A24EHSWITCH TOGGLE SP3T 0.4VA 28V |
1,868 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
ET220N12-ZSWITCH TOGGLE DPDT 20A 125V |
3,406 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
ET02SD1WBESWITCH TOGGLE SPST 0.4VA 20V |
2,767 |
|
Datasheet |
ET | Tray | Active | Through Hole | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

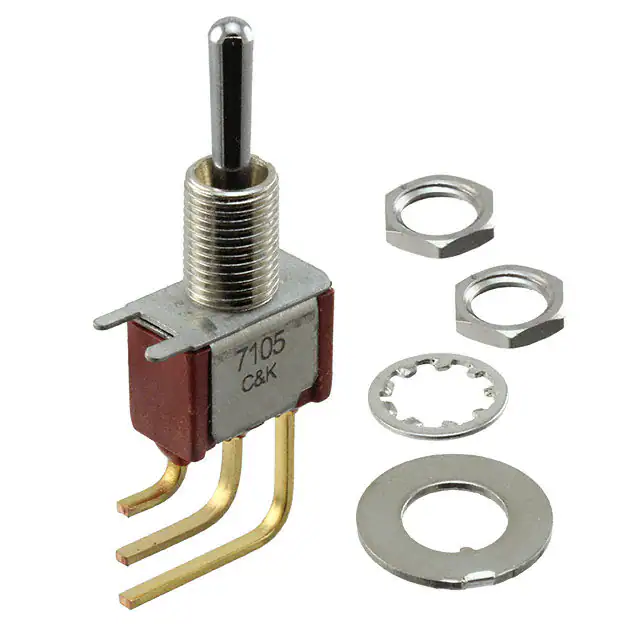

7105SYAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
3,410 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
9202CSWITCH TOGGLE DPDT 20A 125V |
1,668 |
|
Datasheet |
9200 | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | - | - | -10°C ~ 65°C |
|
5636AB9SWITCH TOGGLE SPDT 6A 125V |
2,287 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
B12JJHFSWITCH TOGGLE SPDT 0.4VA 28V |
1,535 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Illuminated | LED, Green | 3.3 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
7101P4YZQESWITCH TOGGLE SPDT 5A 120V |
2,278 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

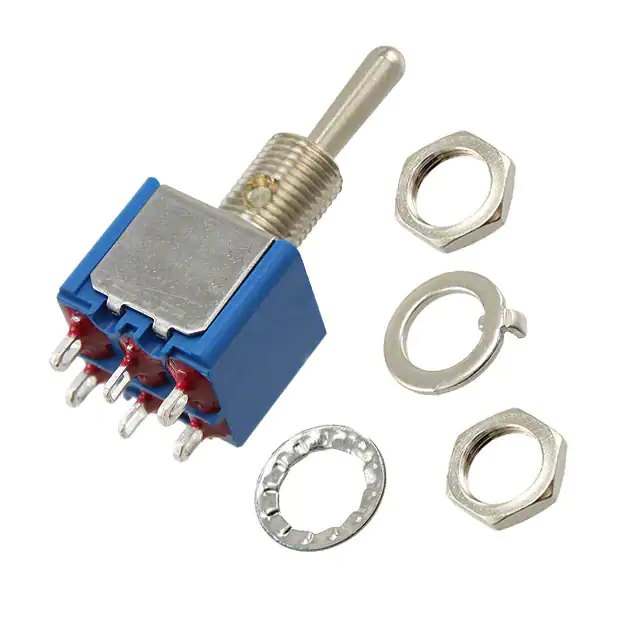

5649ABSWITCH TOGGLE DPDT 6A 125V |
4,293 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
ET115H12-ZSWITCH TOGGLE SPDT 15A 125V |
1,089 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

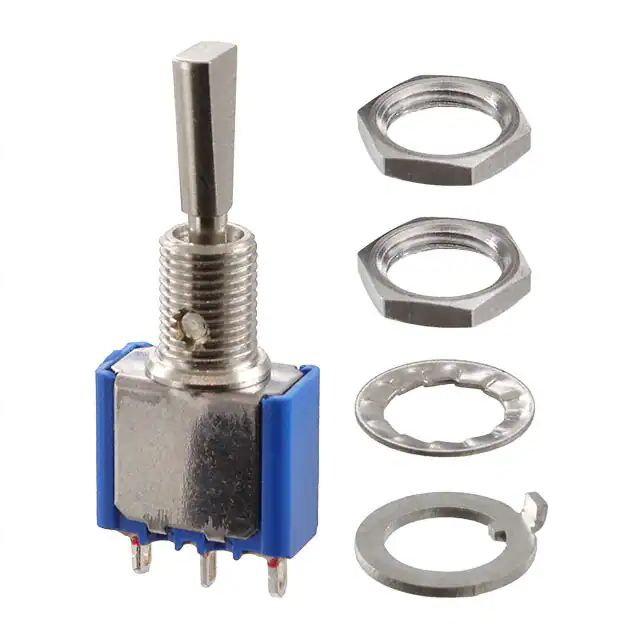

5638AB9SWITCH TOGGLE SPDT 6A 125V |
2,703 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
5637AB9SWITCH TOGGLE SPDT 6A 125V |
2,109 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
4636A22UUSWITCH TOGGLE SPDT 6A 125V |
2,366 |
|
Datasheet |
4600 | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-On | Flatted | 13.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
ET05SD1V3QESWITCH TOGGLE SPDT 2A 120V |
3,562 |
|
Datasheet |
ET | Bulk | Active | Through Hole | SPDT | 2A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
