Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GTB-1B11CSWITCH TOGGLE SPDT 12A 125V |
3,354 |
|
Datasheet |
GTB | Bulk | Active | Panel Mount | SPDT | 12A (AC) | 250 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
7105P1HZBESWITCH TOGGLE SPDT 0.4VA 20V |
1,468 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

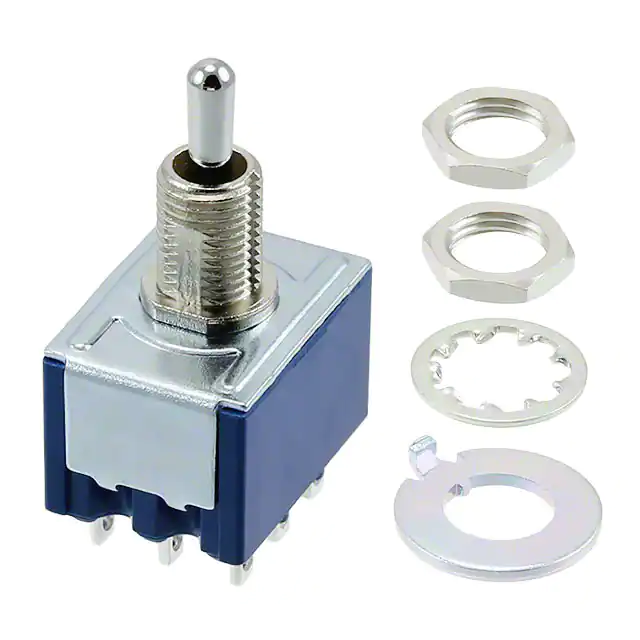

8J3021-ZSWITCH TOGGLE 3PDT 6A 125V |
2,379 |
|
Datasheet |
8J | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|

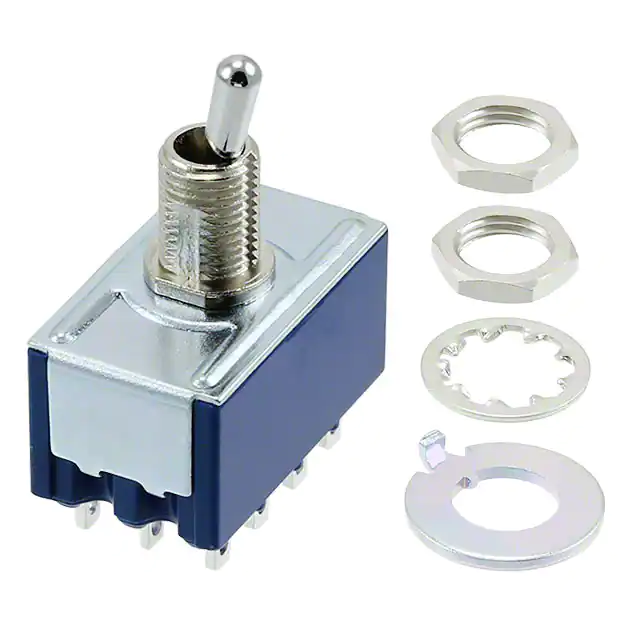

8J4011-ZSWITCH TOGGLE 4PDT 6A 125V |
4,865 |
|
Datasheet |
8J | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
7201SYZGESWITCH TOGGLE DPDT 5A 120V |
4,888 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101K12ZQESWITCH TOGGLE SPDT 5A 120V |
1,710 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET215N-ZSWITCH TOGGLE DPDT 15A 125V |
3,578 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
S5AWSWITCH TOGGLE SPDT 15A 125V |
1,037 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
637NH/2SWITCH TOGGLE SPDT 10A 250V |
3,786 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 250 V | - | Mom-Off-Mom | Flatted | 13.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
8E3011-ZSWITCH TOGGLE 3PDT 6A 125V |
2,647 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
ET215P-ZSWITCH TOGGLE DPDT 15A 125V |
1,413 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
7108TZQESWITCH TOGGLE SPDT 5A 120V |
4,773 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET225K-ZSWITCH TOGGLE DPST 25A 125V |
3,586 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPST | 25A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
|
SQR14231XXSWITCH TOGGLE SP3T 20A 120V |
1,275 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount | SP3T | 20A (AC) | 120 V | - | - | - | - | - | - | - | - | Screw Terminal | - | - | - | -5°C ~ 45°C |
|
7105TCQESWITCH TOGGLE SPDT 5A 120V |
4,739 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5646AB9SWITCH TOGGLE DPDT 6A 125V |
2,110 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
7101K2CBESWITCH TOGGLE SPDT 0.4VA 20V |
2,150 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SCWZQESWITCH TOGGLE DPDT 5A 120V |
1,693 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S21FSWITCH TOGGLE DPST 15A 125V |
2,505 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
ET310A12-ZSWITCH TOGGLE 3PST 10A 125V |
2,578 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | 3PST | 10A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
