Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7207SYCQESWITCH TOGGLE DPDT 5A 120V |
3,764 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
635HSWITCH TOGGLE SPDT 10A 250V |
3,196 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 250 V | - | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|

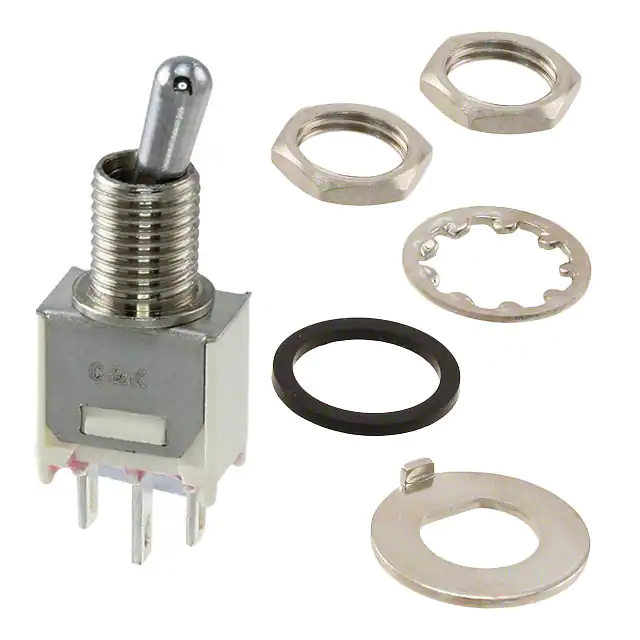

T101SCFZQESWITCH TOGGLE SPDT 3A 120V |
1,417 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 7.11mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S331F/CULSWITCH TOGGLE DPST 20A 125V |
2,669 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
7101K12CQESWITCH TOGGLE SPDT 5A 120V |
2,152 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
6GA5B-73SWITCH TOGGLE SPST-NO 15A 125V |
4,736 |
|
Datasheet |
G | Box | Active | Panel Mount | SPST-NO | 15A (AC) | 125 V | - | Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
7207SYZQESWITCH TOGGLE DPDT 5A 120V |
1,158 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

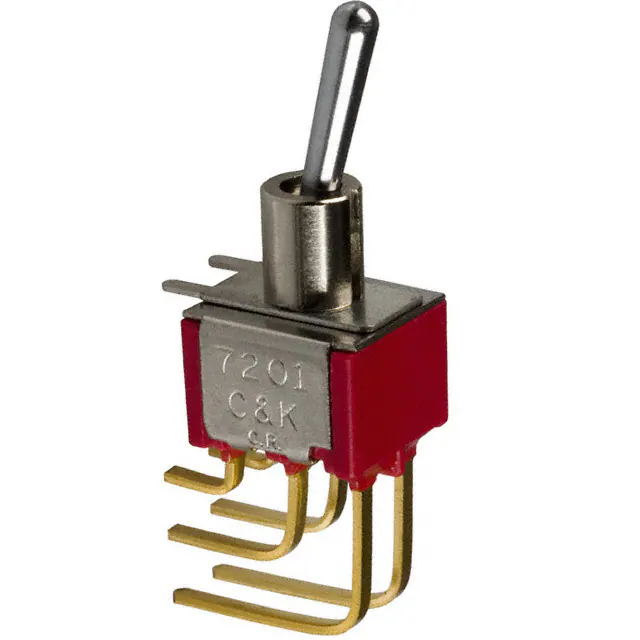

7201SD9AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
4,657 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

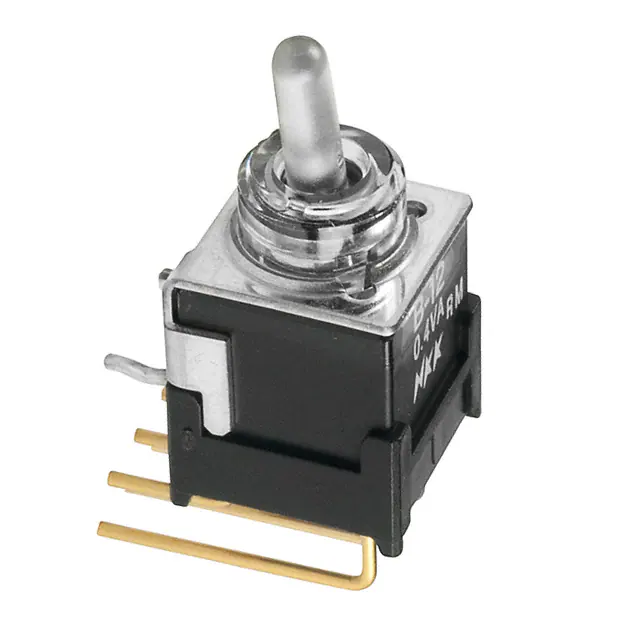

B12JJHCFSWITCH TOGGLE SPDT 0.4VA 28V |
1,631 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|

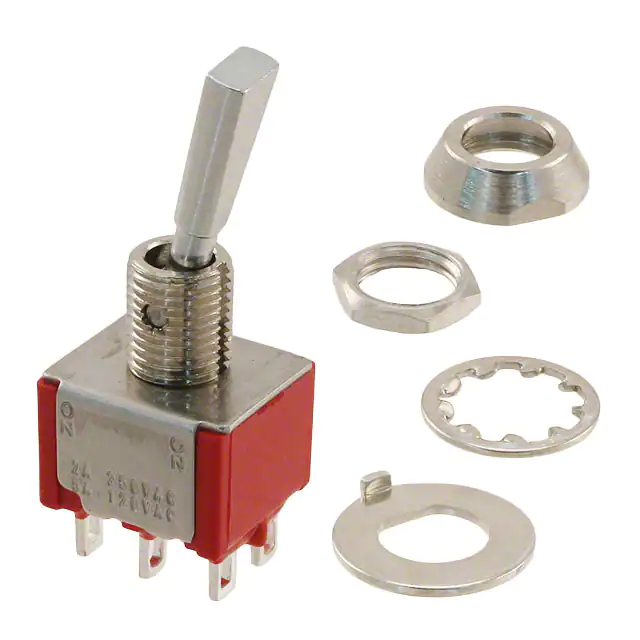

7201P3DZQESWITCH TOGGLE DPDT 5A 120V |
2,166 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

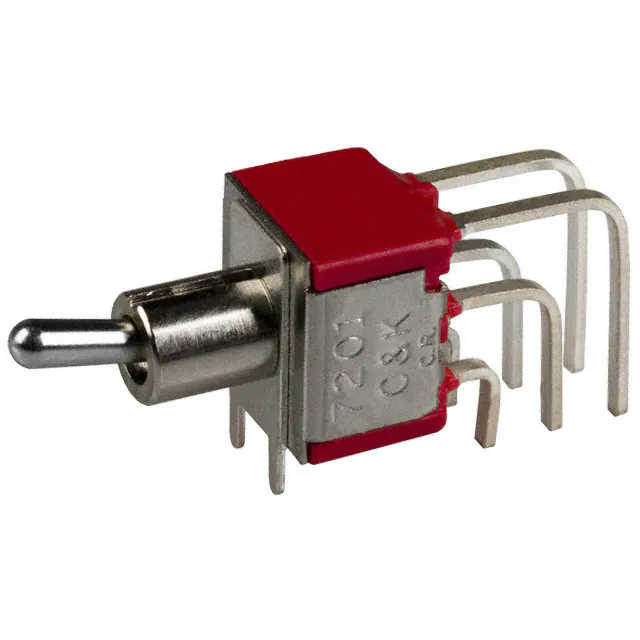

7201MD9AV2QESWITCH TOGGLE DPDT 5A 120V |
1,127 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

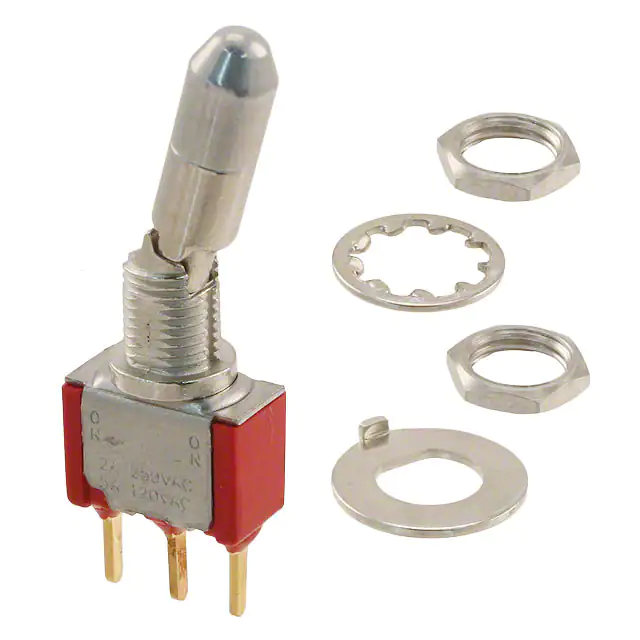

7101K2CGESWITCH TOGGLE SPDT 5A 120V |
100 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

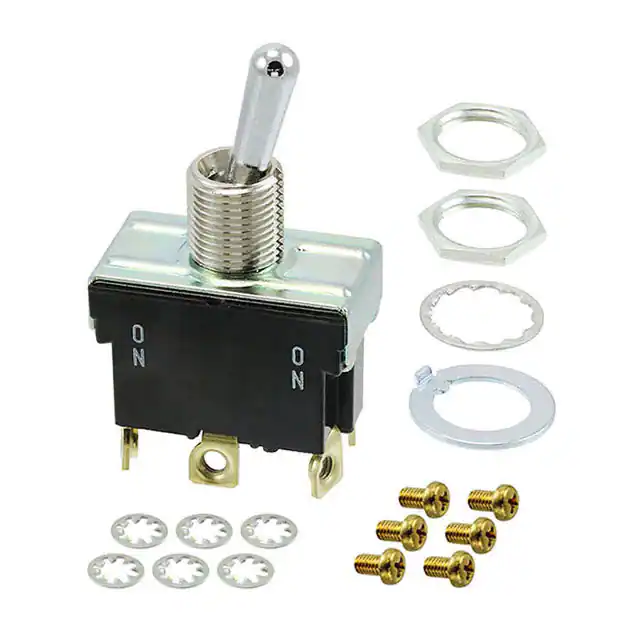

ET215N10-ZSWITCH TOGGLE DPDT 15A 125V |
2,413 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
55021SWITCH TOGGLE SPDT 15A 24V |
2,689 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 24 V | Mom-Off-Mom | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
6FA54-73SWITCH TOGGLE SPST-NO 15A 125V |
4,768 |
|
Datasheet |
F | Box | Active | Panel Mount | SPST-NO | 15A (AC) | 125 V | - | Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
SQR14141XXSWITCH TOGGLE SP4T 15A 120V |
2,289 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount | SP4T | 15A (AC) | 120 V | - | - | - | - | - | - | - | - | Screw Terminal | - | - | - | -5°C ~ 45°C |
|
7205TCWCGESWITCH TOGGLE DPDT 5A 120V |
3,967 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S9AWSWITCH TOGGLE SPDT 15A 125V |
3,056 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
5588SWITCH TOGGLE DPST 15A 24V |
3,231 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | 15A (DC) | - | 24 V | On-Off | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
7201MD9V3QESWITCH TOGGLE DPDT 5A 120V |
2,809 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
