Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
639NH/2SWITCH TOGGLE SPDT 10A 250V |
3,531 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 250 V | - | On-Off-On | Flatted | 13.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
5647AB9SWITCH TOGGLE DPDT 6A 125V |
2,815 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

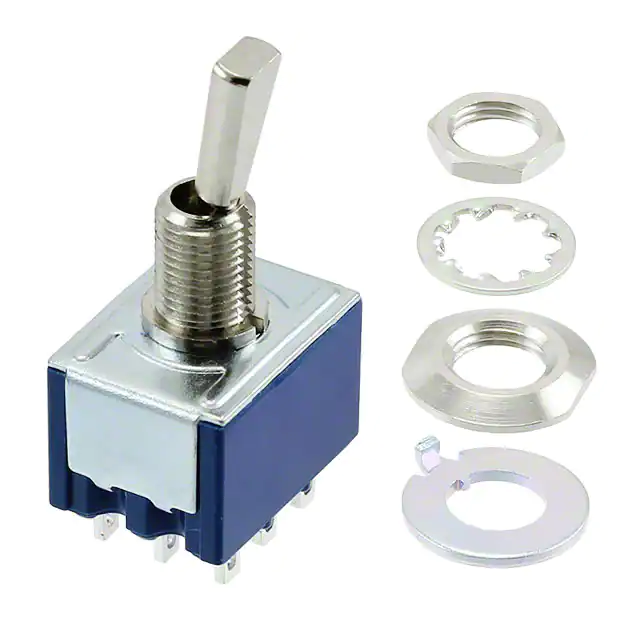

8C3011-ZSWITCH TOGGLE 3PDT 6A 125V |
2,973 |
|
Datasheet |
8C | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|

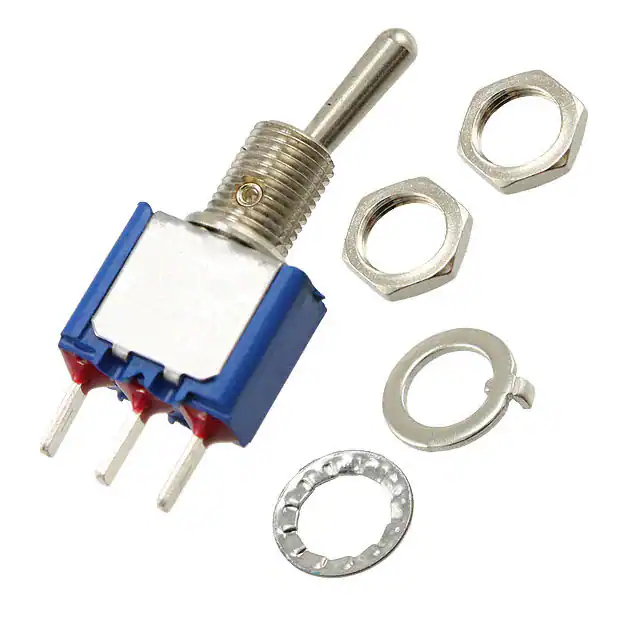

5236ZABULCSASWITCH TOGGLE SPDT 6A 125V |
2,672 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
A28KB-BHSWITCH TOGGLE DPDT 0.4VA 28V |
2,453 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
7101P4DZQESWITCH TOGGLE SPDT 5A 120V |
3,257 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

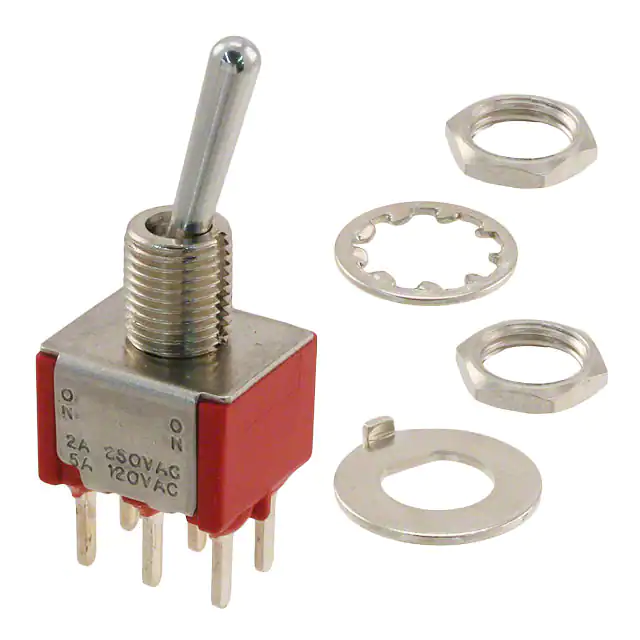

7201SDCQESWITCH TOGGLE DPDT 5A 120V |
2,069 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
55013SWITCH TOGGLE SPST 10A 12V |
3,763 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 10A (DC) | - | 12 V | On-Off | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
S302FSWITCH TOGGLE SPDT 15A 125V |
2,157 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
ET215P12-ZSWITCH TOGGLE DPDT 15A 125V |
3,989 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
ET115G12-ZSWITCH TOGGLE SPDT 15A 125V |
2,880 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
T102LHZQESWITCH TOGGLE SPST 2A 120V |
4,835 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPST | 2A (AC/DC) | 120 V | 28 V | On-Off | Standard Round | 7.37mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B22A1PSWITCH TOGGLE DPDT 0.4VA 28V |
1,121 |
|
Datasheet |
B | Tray | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 8.00mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

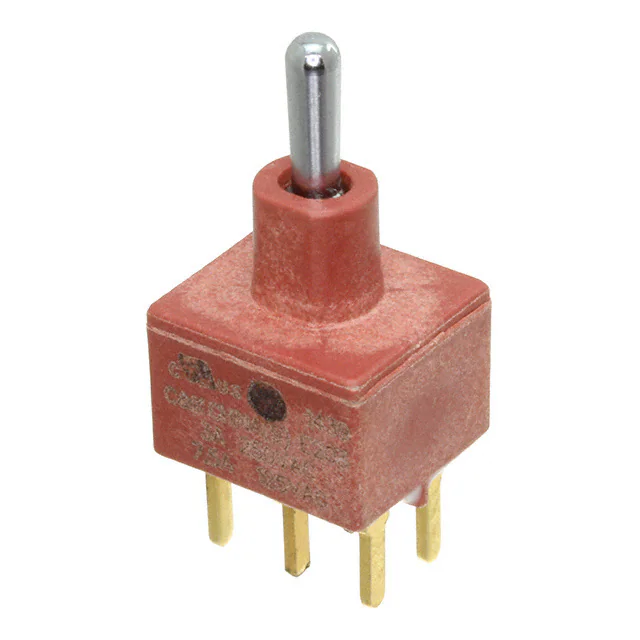

E203MD1CQESWITCH TOGGLE DPDT 7.5A 125V |
2,955 |
|
Datasheet |
E | Bulk | Active | Through Hole | DPDT | 7.5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5647ABSWITCH TOGGLE DPDT 6A 125V |
2,580 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
5648ABSWITCH TOGGLE DPDT 6A 125V |
2,312 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

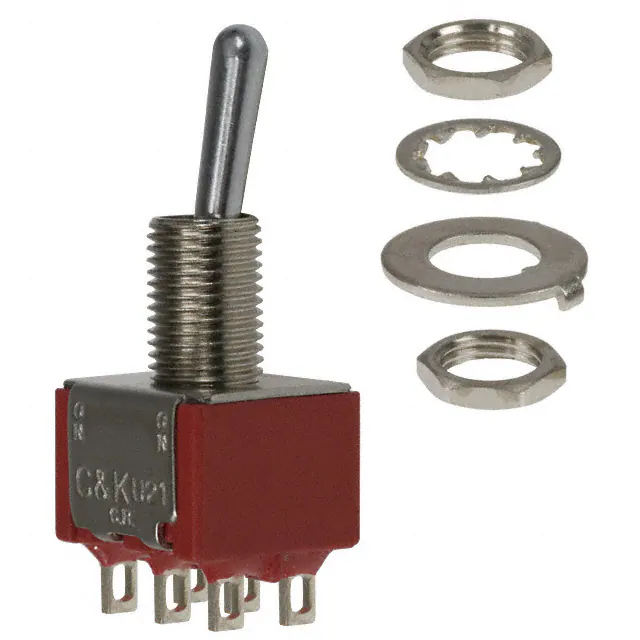

U21SYZQESWITCH TOGGLE DPDT 5A 120V |
2,911 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET225K12-ZSWITCH TOGGLE DPST 25A 125V |
4,023 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPST | 25A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
7101SYZGISWITCH TOGGLE SPDT 5A 120V |
2,264 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Potted | -30°C ~ 85°C |
.jpg)
|
S309SWITCH TOGGLE SPDT 15A 125V |
3,497 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
