Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12-Z.jpg)
|
ET215K12-ZSWITCH TOGGLE DPST 15A 125V |
2,858 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

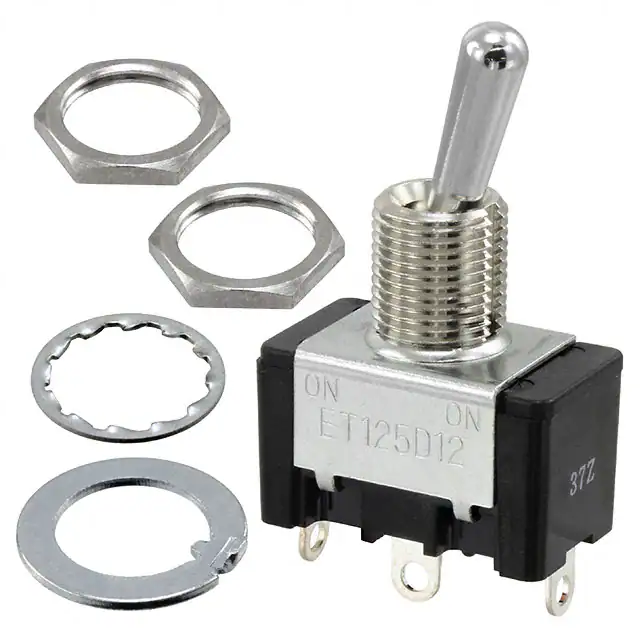

ET125D12-ZSWITCH TOGGLE SPDT 25A 125V |
2,545 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 25A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
ET01MD1V3QESWITCH TOGGLE SPDT 3A 120V |
1,770 |
|
Datasheet |
ET | Tray | Active | Through Hole | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
1,958 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7107SYZBESWITCH TOGGLE SPDT 0.4VA 20V |
100 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

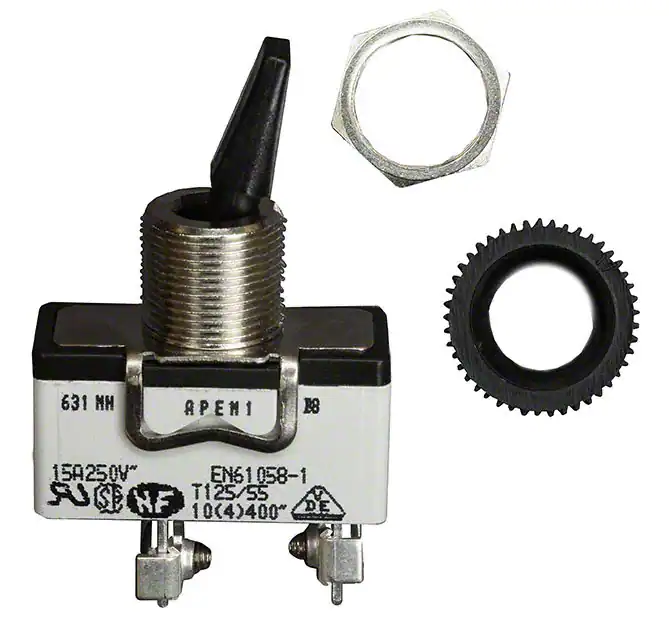

631NHSWITCH TOGGLE SPST 15A 250V |
2,027 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPST | 15A (AC) | 250 V | - | On-Off | Flatted | 13.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
ET210P12-ZSWITCH TOGGLE DPDT 10A 125V |
4,119 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
8E2011C-ZSWITCH TOGGLE DPDT 25MA 20V |
3,985 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | DPDT | 25mA (DC) | - | 20 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
7101SDV3QESWITCH TOGGLE SPDT 5A 120V |
4,220 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5236WWCDB16X445SWITCH TOGGLE SPDT 0.4VA 20V |
3,686 |
|
Datasheet |
5000 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 8.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
B12JJPFSWITCH TOGGLE SPDT 0.4VA 28V |
4,073 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Illuminated | LED, Green | 3.3 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
5236WCDBSWITCH TOGGLE SPDT 0.4VA 20V |
1,962 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
B12A1PSWITCH TOGGLE SPDT 0.4VA 28V |
4,868 |
|
Datasheet |
B | Tray | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 8.00mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SD9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
4,544 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5639AB9SWITCH TOGGLE SPDT 6A 125V |
2,718 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
7103MD9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
2,552 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
55014-05SWITCH TOGGLE SPST 15A 24V |
3,370 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 24 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|

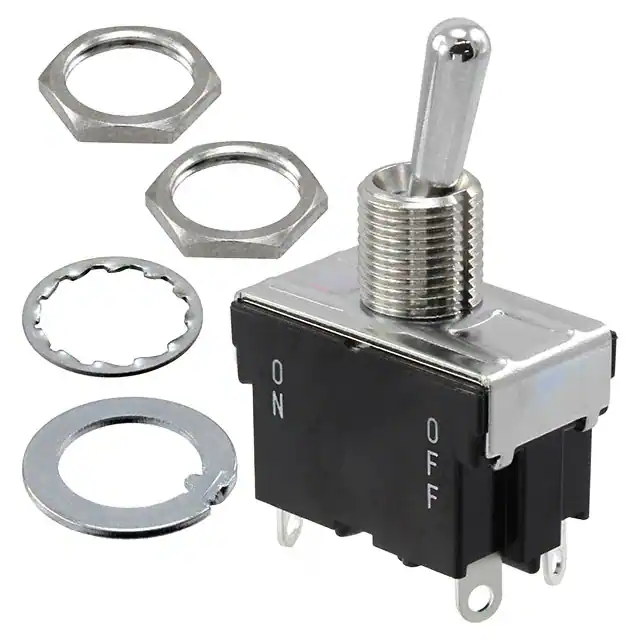

ET220K12-ZSWITCH TOGGLE DPST 20A 125V |
2,245 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
8A3012-ZSWITCH TOGGLE 3PDT 6A 125V |
3,099 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
E101MD1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
4,637 |
|
Datasheet |
E | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
