Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7211SD9AV2BESWITCH TOGGLE SP3T 0.4VA 20V |
4,870 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
WT13SSWITCH TOGGLE SPDT 10A 125V |
2,652 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | 10A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
7201K2ZGESWITCH TOGGLE DPDT 5A 120V |
3,966 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S5AWBSWITCH TOGGLE SPDT 15A 125V |
2,490 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Waterproof Boot | -30°C ~ 70°C |
|
7101K12CWZQE22SWITCH TOGGLE SPDT 5A 120V |
4,303 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Black Anodized | -30°C ~ 85°C |
|
S338SWITCH TOGGLE DPDT 15A 125V |
4,155 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
7101TCWV81GESWITCH TOGGLE SPDT 5A 120V |
2,151 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
649NH/2SWITCH TOGGLE DPDT 10A 250V |
4,289 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | On-Off-On | Flatted | 13.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|

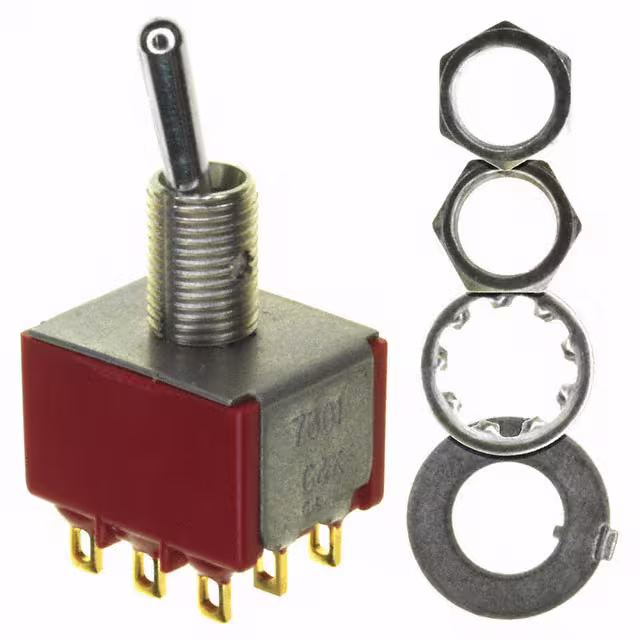

7301SPYZGESWITCH TOGGLE 3PDT 5A 120V |
2,478 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S7AWSWITCH TOGGLE DPDT 20A 125V |
3,991 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
S421SWITCH TOGGLE DPST 20A 125V |
2,830 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

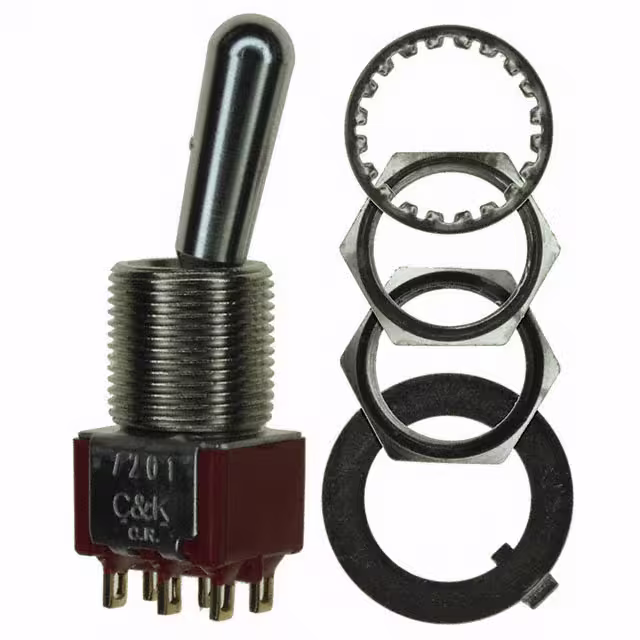

7201TCWZGESWITCH TOGGLE DPDT 5A 120V |
3,775 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
WT13TSWITCH TOGGLE SPDT 10A 125V |
2,003 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | 10A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

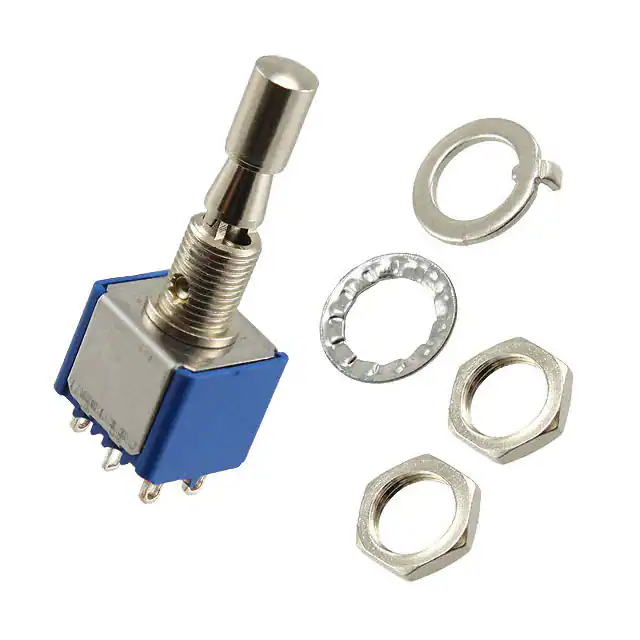

5649AB3VSWITCH TOGGLE DPDT 6A 125V |
1,563 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Locking Lever | 15.10mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
S29AWSWITCH TOGGLE DPDT 15A 125V |
3,462 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
7203K12ZQE3SWITCH TOGGLE DPDT 5A 120V |
1,113 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Red Anodized | -30°C ~ 85°C |
|
S1AW-WLSWITCH TOGGLE SPST 15A 125V |
4,955 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Wire Leads | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
S35SWITCH TOGGLE 3PDT 15A 125V |
1,738 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
S31/CUL-WLSWITCH TOGGLE 3PST 20A 125V |
2,969 |
|
Datasheet |
S | Box | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Wire Leads | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
637H/2KSWITCH TOGGLE SPDT 10A 250V |
1,326 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Front Panel Sealing | -20°C ~ 55°C |
