The MMBT3904-TP is widely adopted in general-purpose electronics due to its balanced switching, gain and cost efficiency.
As a standard NPN bipolar junction transistor, it operates in switching or linear amplification mode. By controlling the base current, it modulates a larger collector current to drive downstream circuitry efficiently.
The device supports collector currents up to 200–300 mA depending on configuration and provides stable hFE gain across operating conditions. Low Vce(sat) helps reduce conduction losses.
Designed for fast signal transitions, suitable for digital switching, small MOSFET driving, clock circuits and waveform shaping applications.
The SOT-23 package offers adequate thermal properties for low-power switching. MCC ensures reliable die construction and long-term stability across temperature ranges used in consumer devices.
Its SOT-23 footprint supports automated SMT production, compact PCB layouts and reduced parasitic effects essential for high-speed operation.
Suitable for amplification stages, level shifting, inductive load drivers, LED drivers, small relay pre-drive circuits and general digital switching.
| Type | NPN Small-Signal BJT |
|---|---|
| Package | SOT-23 (Surface Mount) |
| Collector Current (Ic) | Up to approx. 200–300 mA |
| Vceo Rating | 40 V typical for 3904 family |
| Gain (hFE) | Stable gain across low-to-medium currents |
| Saturation Voltage | Low Vce(sat) for efficient switching |
| Switching Characteristics | Fast response suited for logic and drivers |
| Manufacturer | Micro Commercial Co |

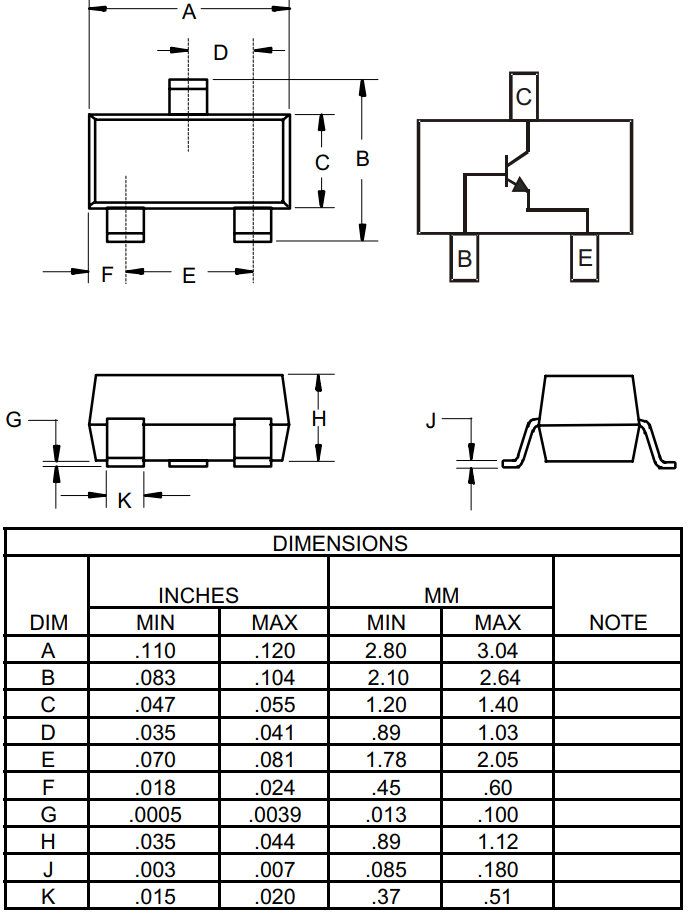

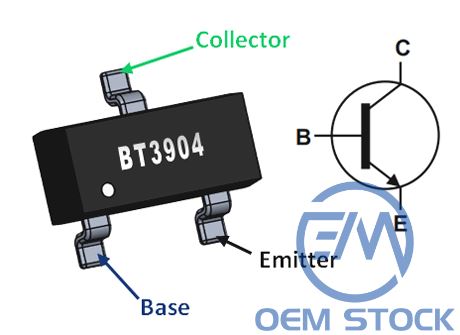

Standard SOT-23 pin configuration for MMBT3904 series:
1 – Base
2 – Emitter
3 – Collector
The SOT-23 package ensures low parasitics, compact PCB footprint and compatibility with high-volume SMT assembly. Designers should follow MCC's recommended land pattern for optimal solderability and thermal performance.
Audio stages, logic buffers, portable device switching.
MOSFET pre-drivers, LED drivers, transistor logic outputs.
Digital switching of small loads and inductive components.
Small-signal amplification and waveform shaping.
Equivalent general-purpose NPN devices include 2N3904, MMBT2222, and similar SOT-23 small-signal BJTs. Selection depends on required Ic, gain group and package preference.
Micro Commercial Co specializes in high-volume discrete semiconductors with robust manufacturing quality and consistent supply for OEM and aftermarket applications.
