| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.14.100.502/0000SWITCH TACTILE SPST-NO 0.1A 42V |
5,344 |
|
Datasheet |
RACON 8 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.90mm | 0.1A @ 42VAC/DC | - | Top Actuated | PC Pin | 8.40mm x 8.40mm | Non-Illuminated | - | - | 330gf | - | - | -40°C ~ 80°C |
|
B3F-5151SWITCH TACTILE SPST-NO 0.05A 24V |
2,474 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -25°C ~ 70°C |
|
320.01E11GRNSWITCH TACT SPST-NO 0.025A 50V |
282 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.00mm | 0.025A @ 50VDC | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Green Cap | -20°C ~ 70°C |
|
228EDVARFSWITCH TACTILE SPST-NO 0.05A 12V |
1,725 |
|
Datasheet |
228E | Tray | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.40mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 200gf | - | - | -40°C ~ 85°C |
|
EDSAC1 LFSSWITCH TACTILE SPST-NO 0.1A 100V |
1,026 |
|
Datasheet |
ED | Bulk | Active | SPST-NO | Off-Mom | Snap Dome | Through Hole | 1.20mm | 0.1A @ 100VAC/DC | - | Top Actuated | PC Pin | - | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 240gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
ME019.5F3502SWITCH TACTILE SPST-NO 0.05A 24V |
246 |
|
Datasheet |
ME | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 9.50mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 350gf | - | - | -40°C ~ 85°C |
|
|
ME029.5F3502SWITCH TACTILE SPST-NO 0.05A 24V |
109 |
|
Datasheet |
ME | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 9.50mm | 0.05A @ 24VDC | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 350gf | - | - | -40°C ~ 85°C |
|
TL1240GQ2JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
1,809 |
|
Datasheet |
TL1240 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 8.20mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Green | 160gf | 2.8 VDC | - | -20°C ~ 70°C |
|
ME026.0F3502SWITCH TACTILE SPST-NO 0.05A 24V |
1,805 |
|
Datasheet |
ME | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 6.00mm | 0.05A @ 24VDC | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 350gf | - | - | -40°C ~ 85°C |
|
|
ME0212.0F3502SWITCH TACTILE SPST-NO 0.05A 24V |
174 |
|
Datasheet |
ME | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 12.00mm | 0.05A @ 24VDC | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 350gf | - | - | -40°C ~ 85°C |
|

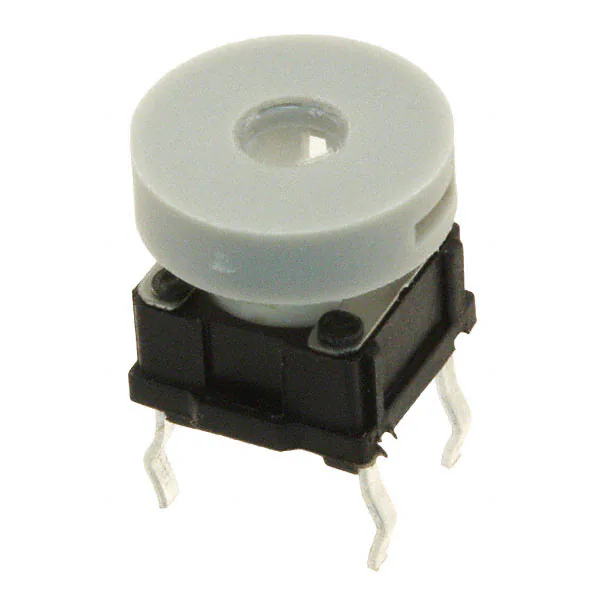

TL1265AQRGRYSWITCH TACTILE SPST-NO 0.05A 12V |
1,392 |
|
Datasheet |
TL1265 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 8.50mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Non-Illuminated | - | - | 160gf | - | Gray Cap | -20°C ~ 70°C |
|
|
EDGSC0 LFGSWITCH TACT SPST-NO 0.05A 100V |
2,512 |
|
Datasheet |
ED | Tray | Active | SPST-NO | Off-Mom | Snap Dome | Surface Mount | 1.20mm | 0.05A @ 100VAC/DC | - | Top Actuated | SMD (SMT) Tab | - | Non-Illuminated | - | - | 240gf | - | - | -55°C ~ 85°C |
|
B3F-1052-GSWITCH TACTILE SPST-NO 0.05A 24V |
1,237 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 180gf | - | - | -25°C ~ 70°C |
|
1241.1624.5SWITCH TACTILE SPST-NO 0.05A 42V |
180 |
|
Datasheet |
PMS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 11.35mm | 0.05A @ 42VDC | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | IP40 | - | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
|
1241.1624.41SWITCH TACTILE SPST-NO 0.05A 42V |
104 |
|
Datasheet |
PMS | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 16.60mm | 0.05A @ 42VDC | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | IP40 | - | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
|
ITS40FV1STSWITCH TACTILE SPST-NO 0.05A 12V |
1,021 |
|
Datasheet |
ITS | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | - | LED, Blue | 160gf | 3.6 VDC | - | -25°C ~ 70°C |
|

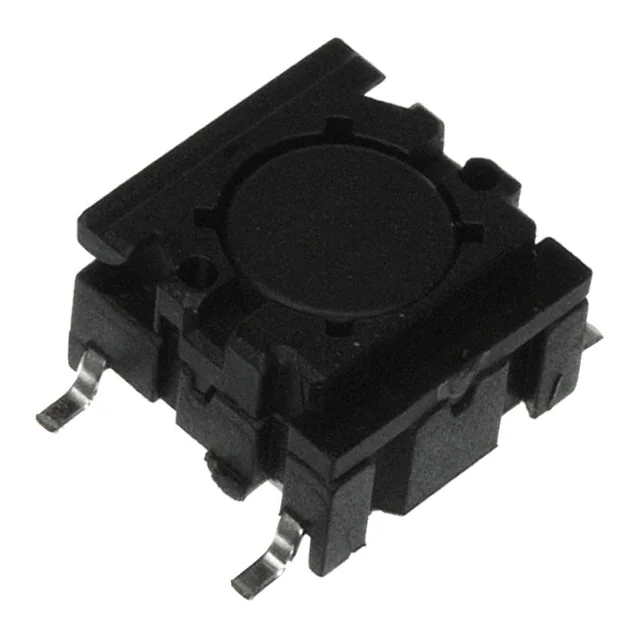

3ASH9SWITCH TACTILE SPST-NO 0.05A 24V |
10,095 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|
TL1240BQSWITCH TACTILE SPST-NO 0.05A 12V |
5,133 |
|
Datasheet |
TL1240 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Blue | 160gf | 4.2 VDC | - | -20°C ~ 70°C |
|
1241.1624.8SWITCH TACTILE SPST-NO 0.05A 42V |
335 |
|
Datasheet |
PMS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 13.60mm | 0.05A @ 42VDC | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | IP40 | - | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
|
|
1241.1624.1SWITCH TACTILE SPST-NO 0.05A 42V |
171 |
|
Datasheet |
PMS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 8.35mm | 0.05A @ 42VDC | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | IP40 | - | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
