| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

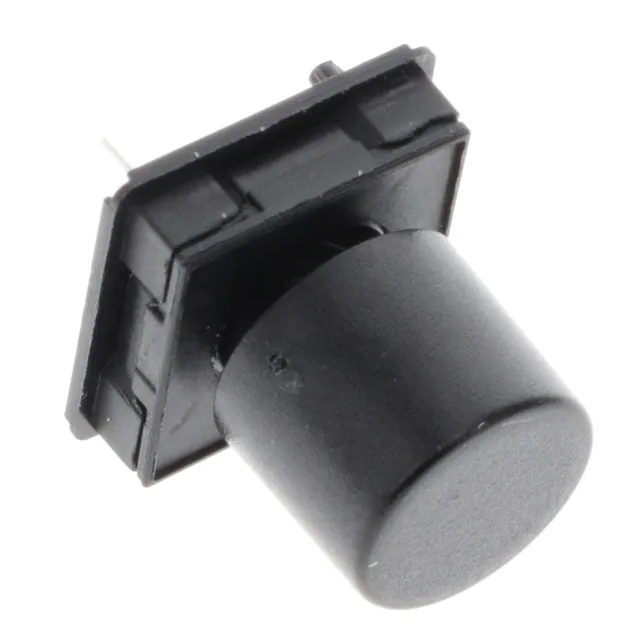

1241.1082.7SWITCH TACT SPST-NO 0.125A 48V |
163 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 13.00mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
1241.1082.4SWITCH TACT SPST-NO 0.125A 48V |
142 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 10.75mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
KT11B1SAM35LFGSWITCH TACTILE SPST-NO 1VA 32V |
9,990 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.57mm x 4.38mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
|
KT11B1SAM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
3,556 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.57mm x 4.38mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11P2SA2M34LFSSWITCH TACTILE SPST-NO 1VA 32V |
2,874 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11B0SM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
6,582 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Flush | Surface Mount | 3.00mm | 1VA @ 32VAC/DC | - | Top Actuated | Gull Wing | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|

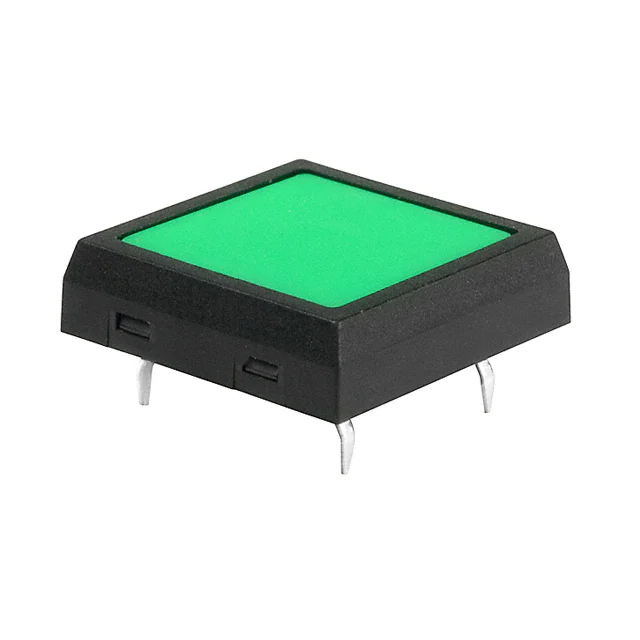

JF15SP1FSWITCH TACTILE SPST-NO 0.05A 24V |
2,830 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

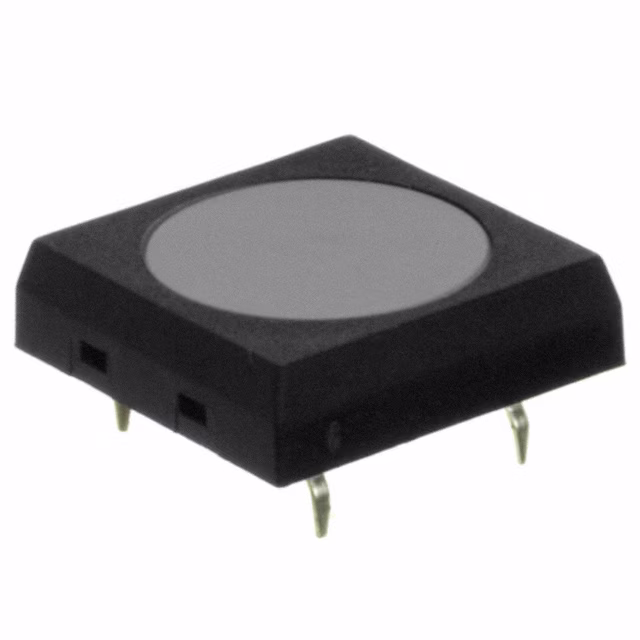

JF15SP2HSWITCH TACTILE SPST-NO 0.05A 24V |
157 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|
TL1220R3NNBGHALOSWITCH TACTILE SPST-NO 0.05A 12V |
329 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 9.95mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | - | LED, Green | 180gf | 2.3 VDC | Tactile Feedback | -40°C ~ 85°C |
|
TL1260RQRBLKSWITCH TACTILE SPST-NO 0.05A 12V |
1,717 |
|
Datasheet |
TL1260 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 6.85mm | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | - | LED, Red | 160gf | 3.5 VDC | Black Cap | -20°C ~ 70°C |
|
|
TL1265YQRYELSWITCH TACTILE SPST-NO 0.05A 12V |
957 |
|
Datasheet |
TL1265 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 8.50mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | - | LED, Yellow | 160gf | 2.3 VDC | Yellow Cap | -20°C ~ 70°C |
|
KT11B2SAM35LFGSWITCH TACTILE SPST-NO 1VA 32V |
46,705 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.57mm x 4.38mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
TL6215RF200RDTSWITCH TACTILE SPST-NO 0.05A 12V |
11,431 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 9.60mm | Side Actuated | PC Pin | 7.70mm x 6.65mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 200gf | 1.95 VDC | - | -20°C ~ 70°C |
|

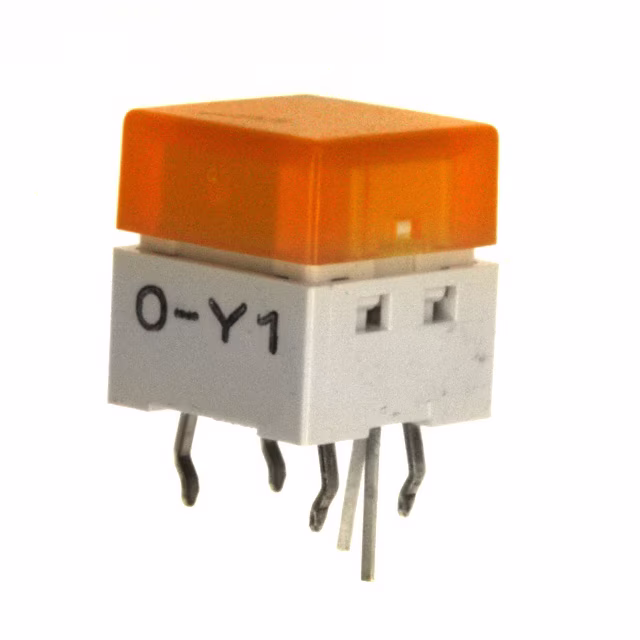

B3W-9000-Y1YSWITCH TACTILE SPST-NO 0.05A 24V |
245 |
|
Datasheet |
B3W-9 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Yellow | 160gf | 2.4 VDC | Sealed - Fully | -25°C ~ 70°C |
|
TL1220R1NNBGHALOSWITCH TACTILE SPST-NO 0.05A 12V |
669 |
|
Datasheet |
TL1220 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 9.90mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | - | LED, Green | 180gf | 2.3 VDC | Tactile Feedback | -40°C ~ 85°C |
|
1241.1082.61SWITCH TACT SPST-NO 0.125A 48V |
724 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 18.25mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
1241.1082.71SWITCH TACT SPST-NO 0.125A 48V |
200 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 19.00mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
|
EDGSC1 LFGSWITCH TACT SPST-NO 0.05A 100V |
946 |
|
Datasheet |
ED | Tray | Active | SPST-NO | Off-Mom | Snap Dome | Surface Mount | 1.20mm | 0.05A @ 100VAC/DC | - | Top Actuated | SMD (SMT) Tab | - | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 240gf | - | Sealed - Fully | -55°C ~ 85°C |
|

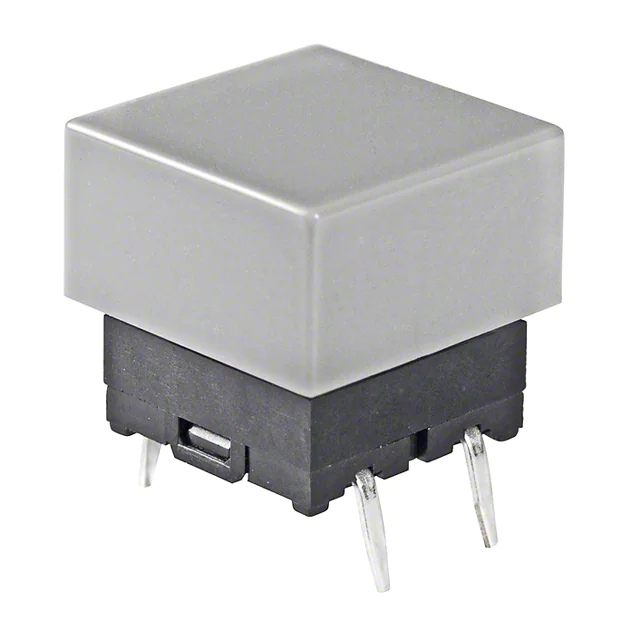

JB15KP-2HSWITCH TACTILE SPST-NO 0.05A 24V |
332 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-2GSWITCH TACTILE SPST-NO 0.05A 24V |
179 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
