| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1270F160GYQATSWITCH TACTILE SPST-NO 0.05A 12V |
381 |
|
Datasheet |
TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 5.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | - | LED, Green/Yellow | 160gf | 2.3 VDC | - | -40°C ~ 85°C |
|

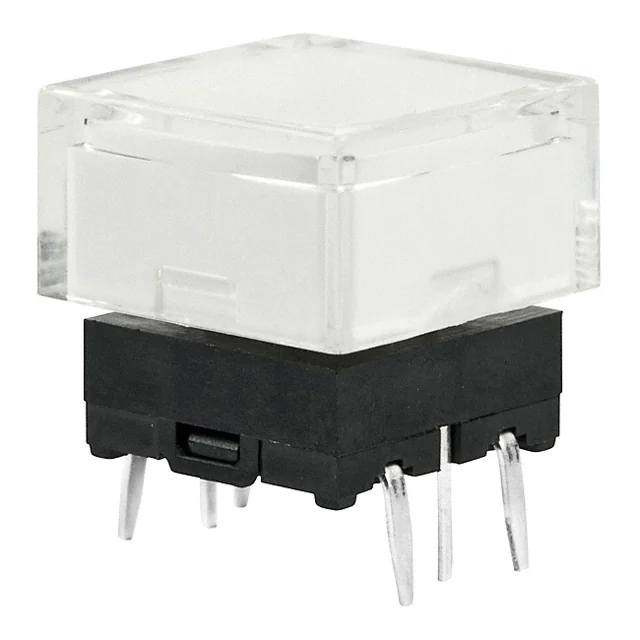

JB15LPE-JBSWITCH TACTILE SPST-NO 0.05A 24V |
346 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 176gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

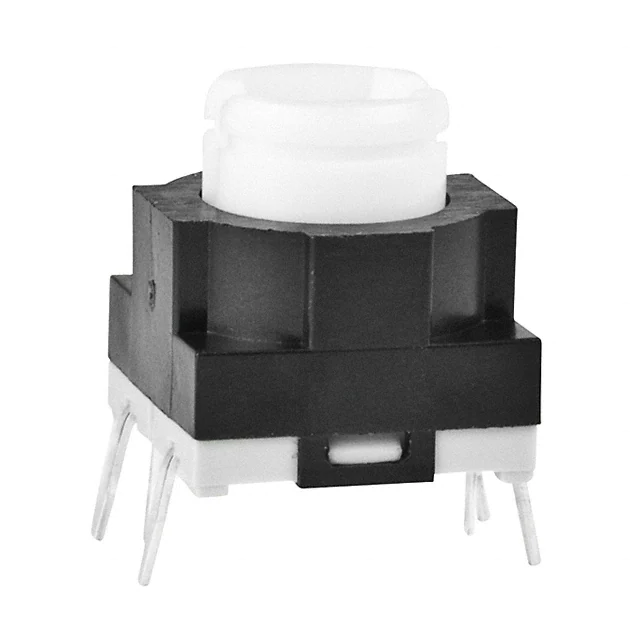

JB15HBPFSWITCH TACT SPST-NO 0.125A 24V |
396 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 265gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|

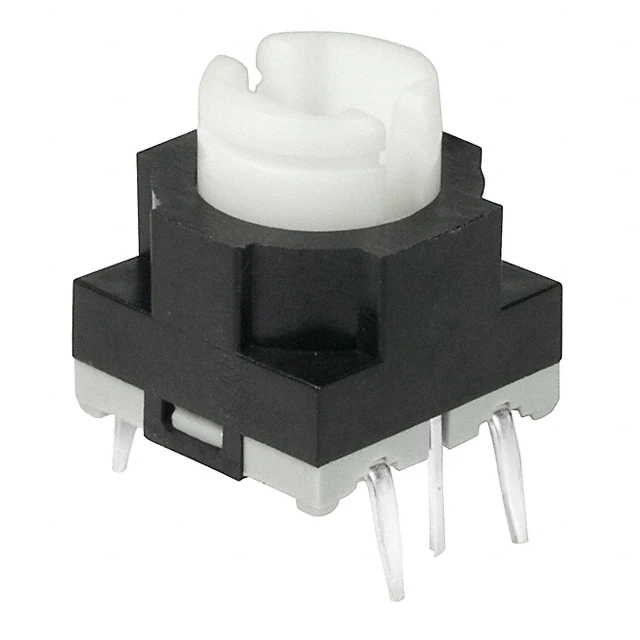

JB15HBPESWITCH TACT SPST-NO 0.125A 24V |
122 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 265gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
K5V 2 CL 4 3 TSWITCH TACTILE SPDT 0.1A 32V |
1,481 |
|
Datasheet |
K5V | Bulk | Active | SPDT | On-Mom | Translucent | Through Hole, Right Angle | - | 0.1A @ 32VDC | 12.40mm | Side Actuated | PC Pin | 8.00mm x 10.10mm | Non-Illuminated | IP40 | - | 400gf | - | Tactile Feedback | -40°C ~ 85°C |
|
5GSH93582SWITCH TACTILE SPST-NO 0.05A 24V |
1,948 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 350gf | 2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|

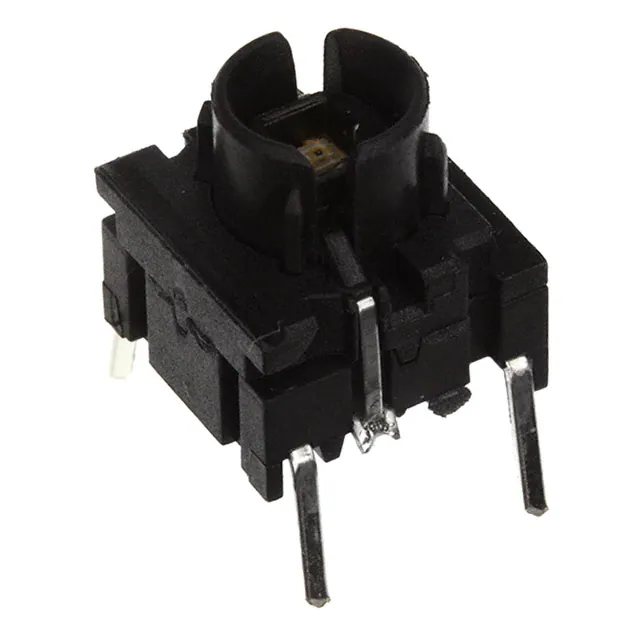

4FTH942SWITCH TACTILE SPST-NO 0.05A 24V |
263 |
|
Datasheet |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 300gf | 2 VDC | Sealed - Flux Protection | -30°C ~ 85°C |
|
440RS67082622SWITCH TACTILE SPST-NO 0.05A 12V |
404 |
|
Datasheet |
WS-TATL | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 8.20mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Red | 220gf | 1.95 VDC | - | -40°C ~ 85°C |
|

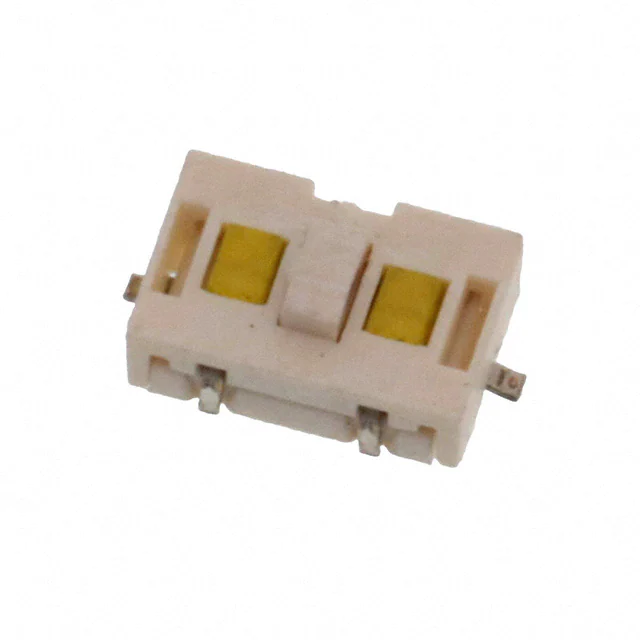

TL3200AF160WWQSWITCH TACTILE SPST-NO 0.05A 12V |
12,959 |
|
Datasheet |
TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | - | LED, White/White | 160gf | 3.7 VDC | - | -25°C ~ 85°C |
|

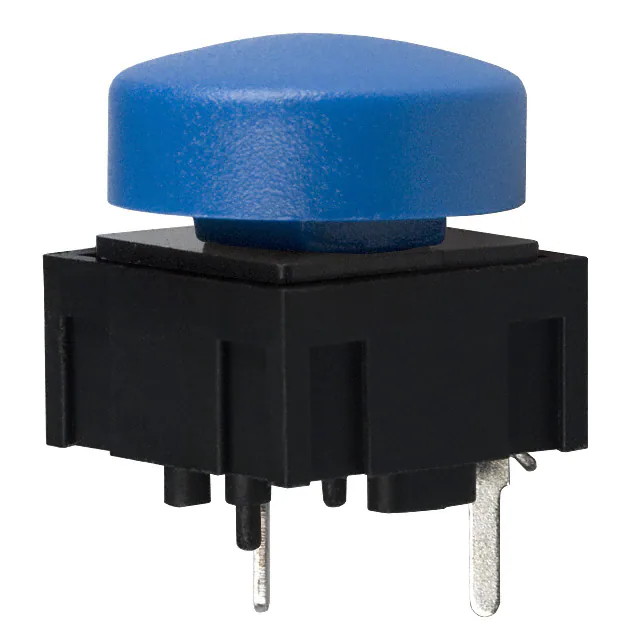

320.02E11.08BLUSWITCH TACT SPST-NO 0.025A 50V |
1,215 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 14.40mm | 0.025A @ 50VDC | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Blue Cap | -20°C ~ 70°C |
|
5GSH93542SWITCH TACTILE SPST-NO 0.05A 24V |
3,849 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 350gf | 2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|
|
TL3275AF160BQSWITCH TACTILE SPST-NO 0.05A 12V |
946 |
|
Datasheet |
TL3275 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 3.90mm | 0.05A @ 12VDC | - | Top Actuated | SMD (SMT) Tab | 6.40mm x 3.55mm | Illuminated | - | LED, Blue | 160gf | - | - | -40°C ~ 85°C |
|
TL1270F160GYQBTSWITCH TACTILE SPST-NO 0.05A 12V |
174 |
|
Datasheet |
TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 6.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | - | LED, Green/Yellow | 160gf | 2.3 VDC | - | -40°C ~ 85°C |
|
ITS23FV2SRSWITCH TACTILE SPST-NO 0.05A 12V |
584 |
|
Datasheet |
ITS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | - | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | - | LED, Green/Yellow | 160gf | 2.5 VDC | - | -25°C ~ 70°C |
|
ITS13FV3SRSWITCH TACTILE SPST-NO 0.05A 12V |
502 |
|
Datasheet |
ITS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | - | 0.05A @ 12VDC | - | Top Actuated | J Lead | 7.50mm x 7.00mm | Illuminated | - | LED, Green/Red | 160gf | 2.5 VDC | - | -25°C ~ 70°C |
|

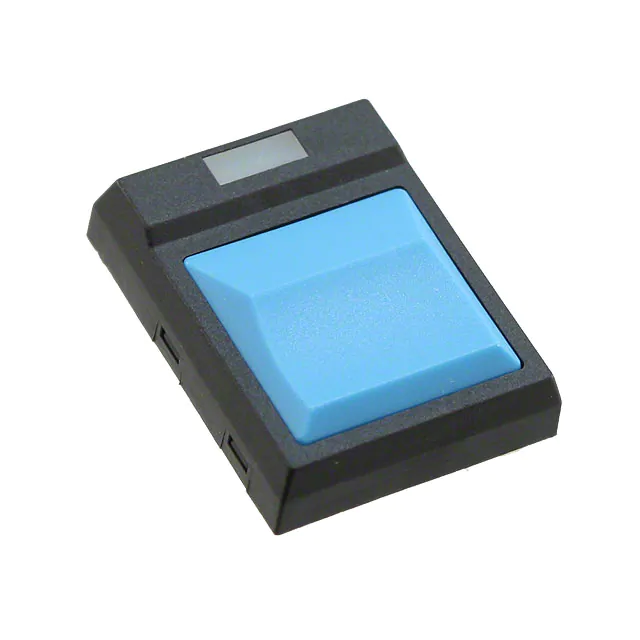

JF15RP3GFSWITCH TACTILE SPST-NO 0.05A 24V |
135 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Green | 200gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

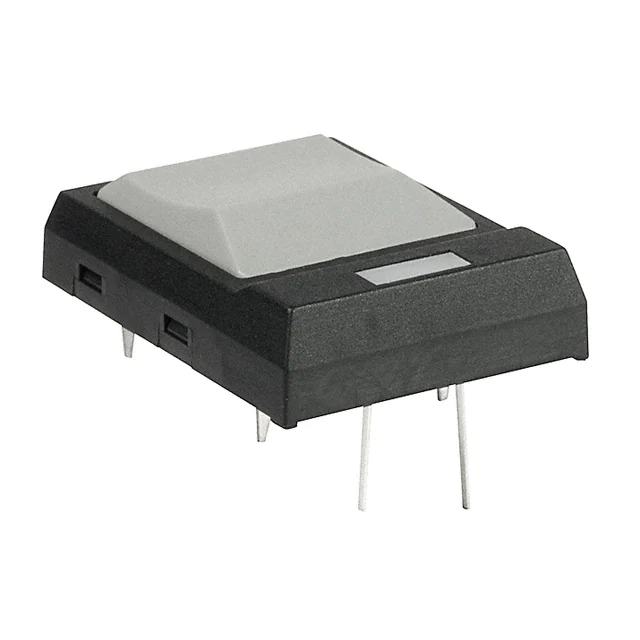

JF15RP3HCSWITCH TACTILE SPST-NO 0.05A 24V |
3,720 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Red | 200gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
3FTH940SWITCH TACTILE SPST-NO 0.05A 24V |
1,246 |
|
Datasheet |
Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 300gf | 2.1 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|

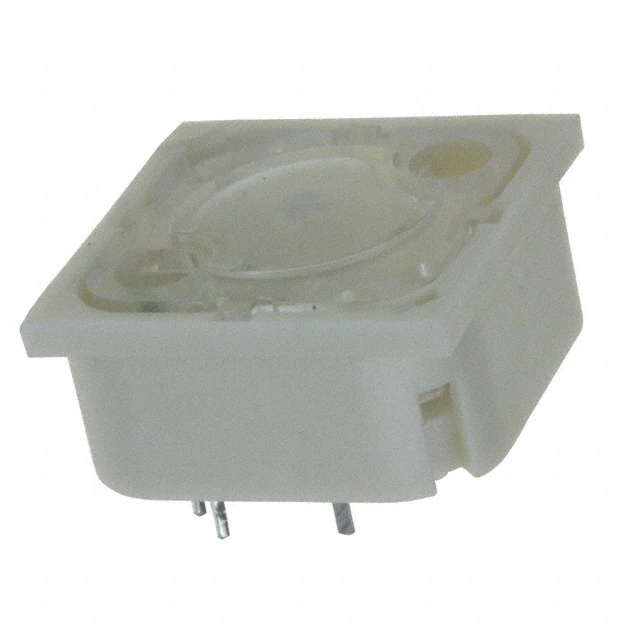

3.14.001.032/0000SWITCH TACTILE SPST-NO 0.1A 42V |
3,743 |
|
Datasheet |
RF19 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.1A @ 42VAC/DC | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | - | LED, Green | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
|
440GS67082622SWITCH TACTILE SPST-NO 0.05A 12V |
147 |
|
Datasheet |
WS-TATL | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 8.20mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 220gf | 3.2 VDC | - | -40°C ~ 85°C |
