| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9000-HG1NSWITCH TACTILE SPST-NO 0.05A 24V |
252 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-B1NSWITCH TACTILE SPST-NO 0.05A 24V |
597 |
|
Datasheet |
B3W-9 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Blue | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-HG1GSWITCH TACTILE SPST-NO 0.05A 24V |
295 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9010-R1RSWITCH TACTILE SPST-NO 0.05A 24V |
298 |
|
Datasheet |
B3W-9 | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Red | 160gf | 1.8 VDC | Sealed - Fully | -25°C ~ 70°C |
|
TL3200AF160GRQSWITCH TACTILE SPST-NO 0.05A 12V |
14,020 |
|
Datasheet |
TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | - | LED, Green/Red | 160gf | 2.3 VDC | - | -25°C ~ 85°C |
|
JB15HKP-1BSWITCH TACT SPST-NO 0.125A 24V |
308 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|

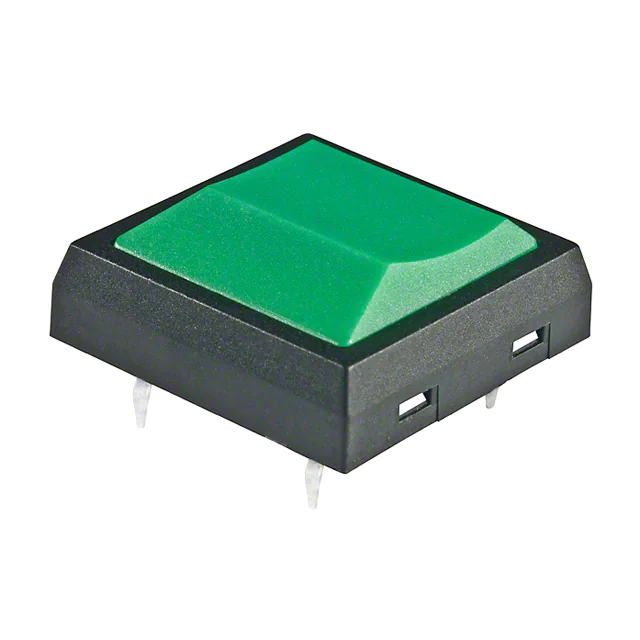

JF15SP3FSWITCH TACTILE SPST-NO 0.05A 24V |
102 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 196gf | - | Process Sealed | -25°C ~ 85°C |
|
KT11S2SA2M35LFGSWITCH TACTILE SPST-NO 1VA 32V |
15,823 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
B3W-9012-RG2NSWITCH TACTILE SPST-NO 0.05A 24V |
290 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green/Red | 230gf | 1.8, 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
TL6215VF200BETSWITCH TACTILE SPST-NO 0.05A 12V |
582 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 10.70mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Blue | 200gf | 3.3 VDC | - | -20°C ~ 70°C |
|
B3W-9010-B1NSWITCH TACTILE SPST-NO 0.05A 24V |
194 |
|
Datasheet |
B3W-9 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Blue | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|

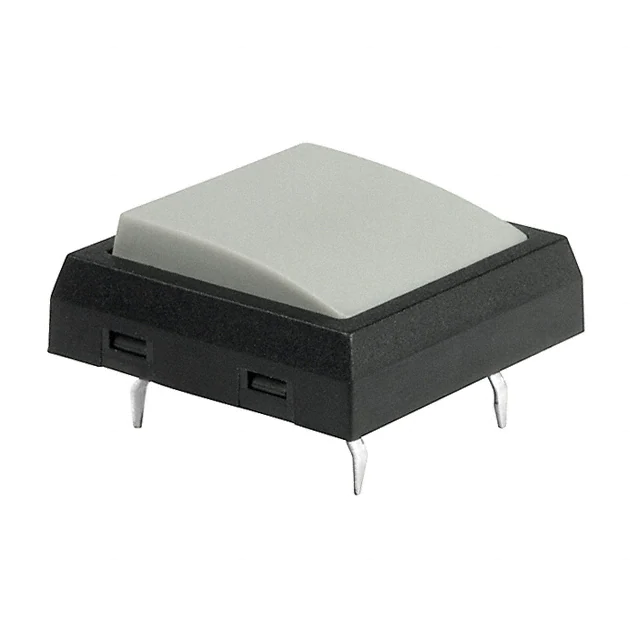

JF15SP4HSWITCH TACTILE SPST-NO 0.05A 24V |
1,111 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.98mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 200gf | - | Process Sealed | -25°C ~ 85°C |
|
|
JB15HKP-2ASWITCH TACT SPST-NO 0.125A 24V |
467 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
JB15HKP-2BSWITCH TACT SPST-NO 0.125A 24V |
243 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
B3W-9010-G2NSWITCH TACTILE SPST-NO 0.05A 24V |
237 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 160gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-B1BSWITCH TACTILE SPST-NO 0.05A 24V |
202 |
|
Datasheet |
B3W-9 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Blue | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-RHG2CSWITCH TACTILE SPST-NO 0.05A 24V |
1,203 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green/Red | 160gf | 1.8, 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
TL3253BBABBAF160QSWITCH TACT SPSTX2 0.05A 12V |
915 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | Dual | Through Hole, Right Angle | - | 0.05A @ 12VDC | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | - | LED, Blue/Blue | 160gf | 3.3 VDC | - | -20°C ~ 70°C |
|
ITS50FV3SRSWITCH TACTILE SPST-NO 0.05A 12V |
3,369 |
|
Datasheet |
ITS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | - | 0.05A @ 12VDC | - | Top Actuated | J Lead | 7.50mm x 7.00mm | Illuminated | - | LED, White | 160gf | 3.6 VDC | - | -25°C ~ 70°C |
|

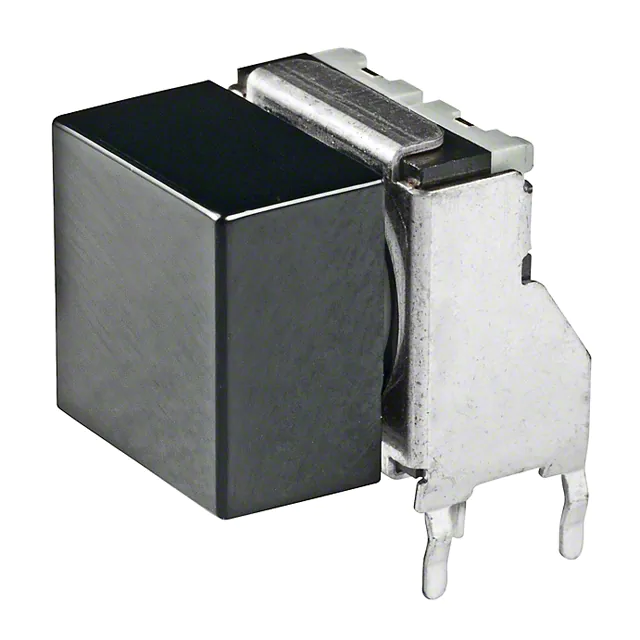

JB15HKH-6ASWITCH TACT SPST-NO 0.125A 24V |
202 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole, Right Angle | - | 0.125A @ 24VDC | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
