| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9000-Y1NSWITCH TACTILE SPST-NO 0.05A 24V |
1,357 |
|
Datasheet |
B3W-9 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Yellow | 160gf | 2.4 VDC | Sealed - Fully | -25°C ~ 70°C |
|
TL1250F180GRRCLRSWITCH TACTILE SPST-NO 0.05A 12V |
562 |
|
Datasheet |
TL1250 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 10.70mm | Side Actuated | PC Pin | 8.30mm x 10.30mm | Illuminated | - | LED, Green | 180gf | 2.3 VDC | Tactile Feedback | -20°C ~ 70°C |
|
1241.1606.11SWITCH TACTILE SPST-NO 0.05A 42V |
200 |
|
Datasheet |
SMS | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.95mm | 0.05A @ 42VDC | - | Top Actuated | Gull Wing | 11.40mm x 11.40mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 220gf | - | Tactile Feedback | -40°C ~ 85°C |
|

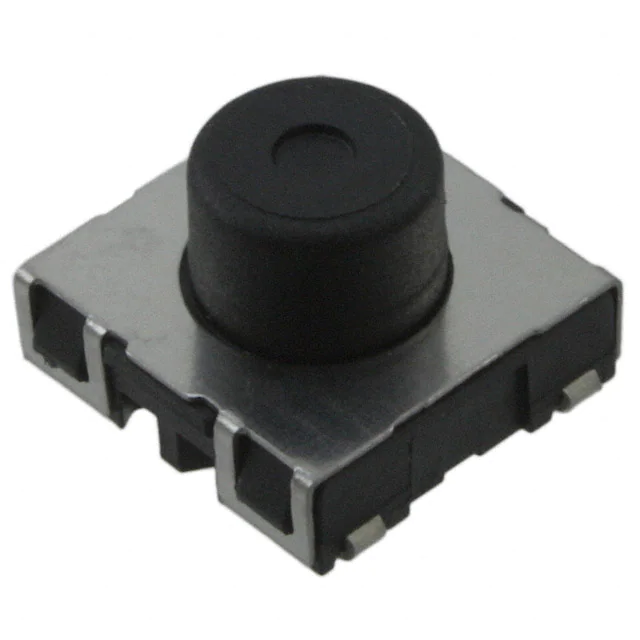

1241.1619.11SWITCH TACTILE SPST-NO 0.05A 42V |
200 |
|
Datasheet |
SMS | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 7.75mm | 0.05A @ 42VDC | - | Top Actuated | J Lead | 11.40mm x 11.40mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 220gf | - | Tactile Feedback | -40°C ~ 85°C |
|
1241.1607.11SWITCH TACTILE SPST-NO 0.05A 42V |
129 |
|
Datasheet |
SMS | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.95mm | 0.05A @ 42VDC | - | Top Actuated | J Lead | 11.40mm x 11.40mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 220gf | - | Tactile Feedback | -40°C ~ 85°C |
|
B3W-9002-G1CSWITCH TACTILE SPST-NO 0.05A 24V |
168 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 230gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-G1CSWITCH TACTILE SPST-NO 0.05A 24V |
211 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 160gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
1241.1624.61SWITCH TACTILE SPST-NO 0.05A 42V |
184 |
|
Datasheet |
PMS | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 18.10mm | 0.05A @ 42VDC | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | IP40 | - | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
|
1241.1607.23SWITCH TACTILE SPST-NO 0.05A 42V |
1,950 |
|
Datasheet |
SMS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.95mm | 0.05A @ 42VDC | - | Top Actuated | J Lead | 11.40mm x 11.40mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 220gf | - | Tactile Feedback | -40°C ~ 85°C |
|

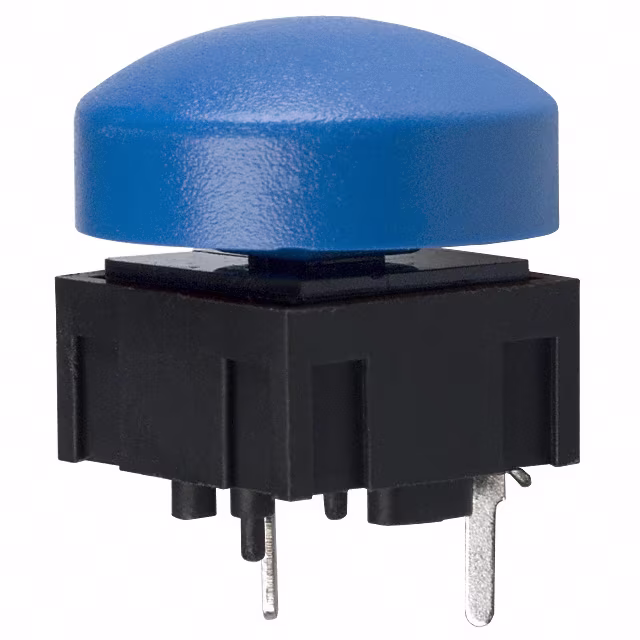

320.02E11.09BLUSWITCH TACT SPST-NO 0.025A 50V |
998 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 15.30mm | 0.025A @ 50VDC | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Blue Cap | -20°C ~ 70°C |
|
95CW06C3RARTSWITCH TACTILE SPST-NO 0.05A 12V |
1,421 |
|
Datasheet |
95C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | SMD (SMT) Tab | 7.55mm x 4.61mm | Non-Illuminated | - | - | 260gf | - | Washable | -25°C ~ 70°C |
|
228HMVARBFRSWITCH TACTILE SPST-NO 0.05A 12V |
1,368 |
|
Datasheet |
228H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.05mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 8.00mm x 5.20mm | Illuminated | - | LED, Blue/Red | 160gf | - | - | -20°C ~ 70°C |
|
K8OG41G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
4,730 |
|
Datasheet |
K8 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Surface Mount | 6.00mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 8.40mm x 8.30mm | Illuminated | IP40 | LED, Orange | 400gf | 1.85 VDC | - | -40°C ~ 85°C |
|
1241.1022SWITCH TACTILE SPST-NO 0.05A 24V |
200 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.75mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
TL3240F160BTSWITCH TACTILE SPST-NO 0.05A 12V |
6,869 |
|
Datasheet |
TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.80mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | - | LED, Blue | 160gf | 3.2 VDC | - | -25°C ~ 70°C |
|
|
JB15KP-1HSWITCH TACTILE SPST-NO 0.05A 24V |
826 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|

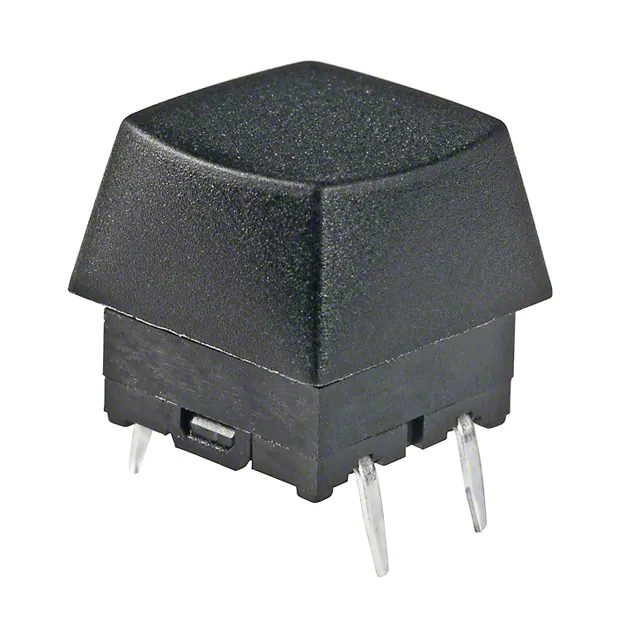

JB15KP-1ASWITCH TACTILE SPST-NO 0.05A 24V |
460 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
1241.1082.3SWITCH TACT SPST-NO 0.125A 48V |
203 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 10.00mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
1241.1082.8SWITCH TACT SPST-NO 0.125A 48V |
203 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 13.75mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
1241.1082.2SWITCH TACT SPST-NO 0.125A 48V |
190 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 9.25mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
