| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KT11B2JM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
5,382 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.24mm | 1VA @ 32VAC/DC | - | Top Actuated | J Lead | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|

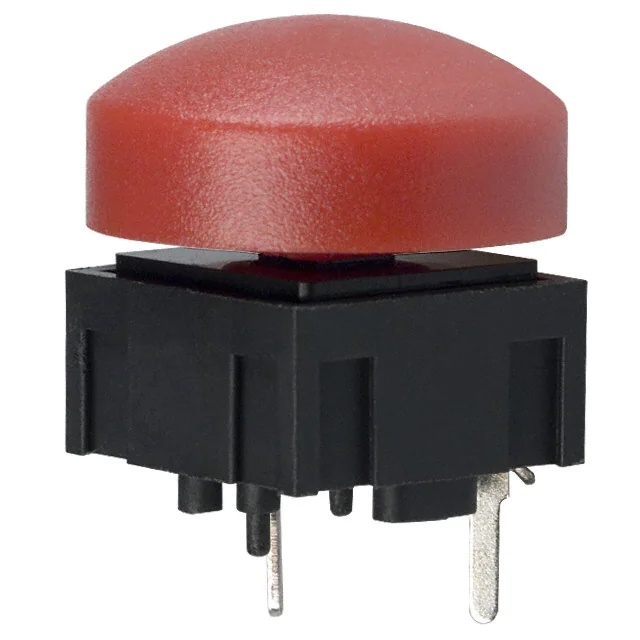

320.02E11.09REDSWITCH TACT SPST-NO 0.025A 50V |
302 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 15.30mm | 0.025A @ 50VDC | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Red Cap | -20°C ~ 70°C |
|
JB15HAP-2HSWITCH TACT SPST-NO 0.125A 24V |
266 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
TL1220R1BBBRHALOSWITCH TACTILE SPST-NO 0.05A 12V |
576 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 9.90mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | - | LED, Red | 180gf | 2.3 VDC | Tactile Feedback | -40°C ~ 85°C |
|
1241.1032.3SWITCH TACTILE SPST-NO 0.05A 24V |
244 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 10.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
B3W-9002-RG2CSWITCH TACTILE SPST-NO 0.05A 24V |
292 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green/Red | 230gf | 1.8, 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-RG2NSWITCH TACTILE SPST-NO 0.05A 24V |
287 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green/Red | 230gf | 1.8, 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|

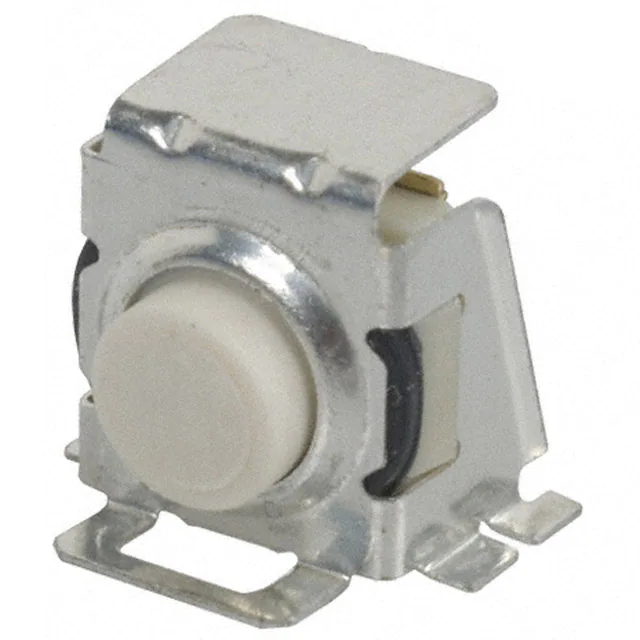

KT11P3SA2M35LFGSWITCH TACTILE SPST-NO 1VA 32V |
886 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
|
TL1220S3NNBWTRIANGSWITCH TACTILE SPST-NO 0.05A 12V |
947 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | Rectangular Button | Through Hole | 14.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | - | LED, White | 180gf | 3.6 VDC | - | -40°C ~ 85°C |
|

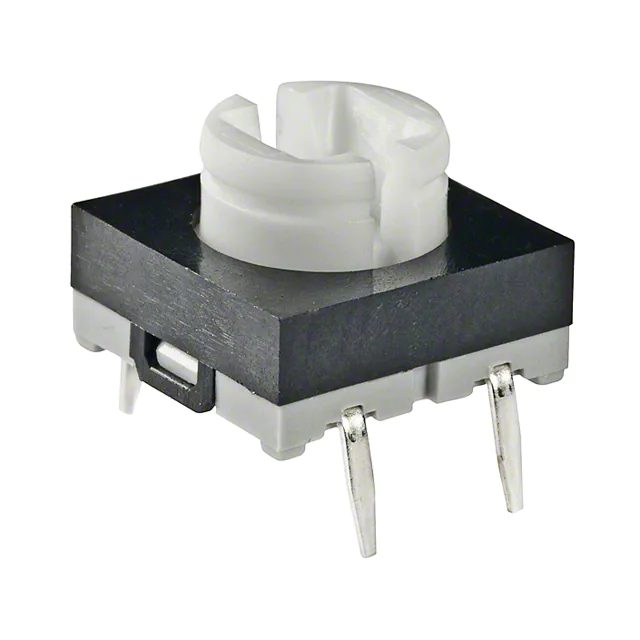

JB15HKPSWITCH TACT SPST-NO 0.125A 24V |
527 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
TL6215VF200RETSWITCH TACTILE SPST-NO 0.05A 12V |
823 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 10.70mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 200gf | 1.95 VDC | - | -20°C ~ 70°C |
|
TL6215VF200GETSWITCH TACTILE SPST-NO 0.05A 12V |
275 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 10.70mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 200gf | 2.1 VDC | - | -20°C ~ 70°C |
|

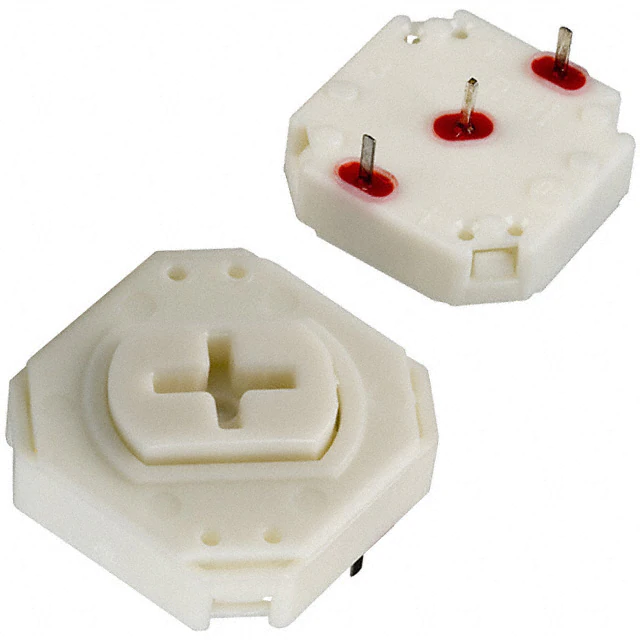

3.14.100.601/0000SWITCH TACTILE SPST-NO 0.1A 35V |
455 |
|
Datasheet |
RF15N | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 6.20mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|

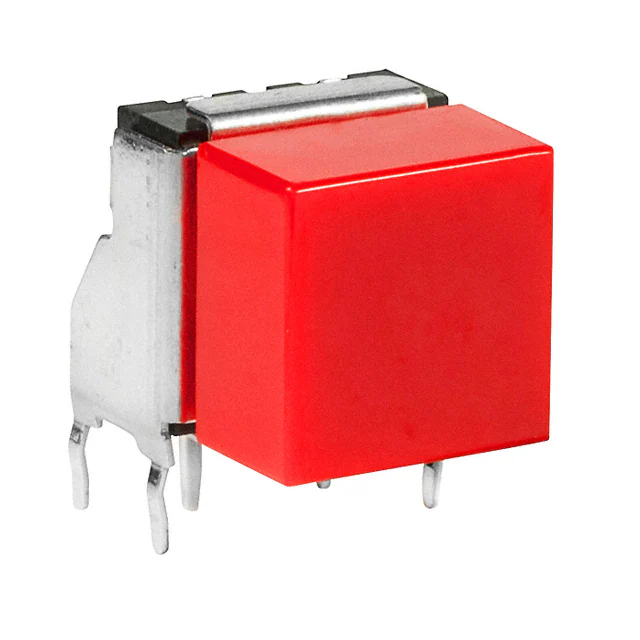

JB15KH-6CSWITCH TACTILE SPST-NO 0.05A 24V |
3,179 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole, Right Angle | - | 0.05A @ 24VDC | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|

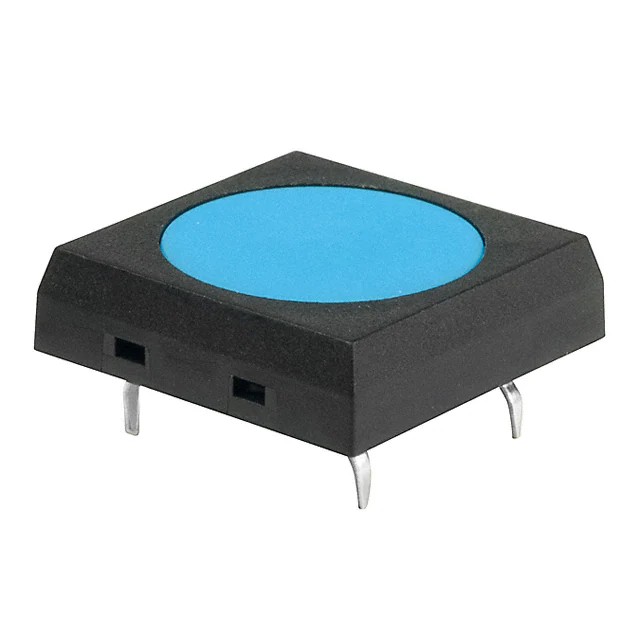

JF15SP2GSWITCH TACTILE SPST-NO 0.05A 24V |
474 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

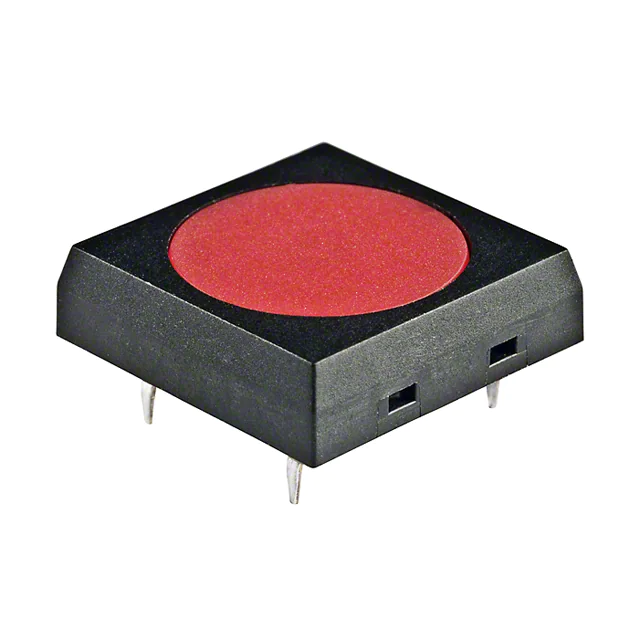

JF15SP2CSWITCH TACTILE SPST-NO 0.05A 24V |
265 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|
ITS50FR2STSWITCH TACTILE SPST-NO 0.05A 12V |
1,956 |
|
Datasheet |
ITS | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | PC Pin | 8.30mm x 9.70mm | Illuminated | - | LED, White | 160gf | 3.6 VDC | - | -25°C ~ 70°C |
|
TL1250F180BQRCLRSWITCH TACTILE SPST-NO 0.05A 12V |
589 |
|
Datasheet |
TL1250 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 10.70mm | Side Actuated | PC Pin | 8.30mm x 10.30mm | Illuminated | - | LED, Blue | 180gf | 4 VDC | Tactile Feedback | -20°C ~ 70°C |
|
320.03E11.08GRYSWITCH TACT SPST-NO 0.025A 50V |
839 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 18.50mm | 0.025A @ 50VDC | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
KT11P2SA2M35LFGSWITCH TACTILE SPST-NO 1VA 32V |
5,900 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
