| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

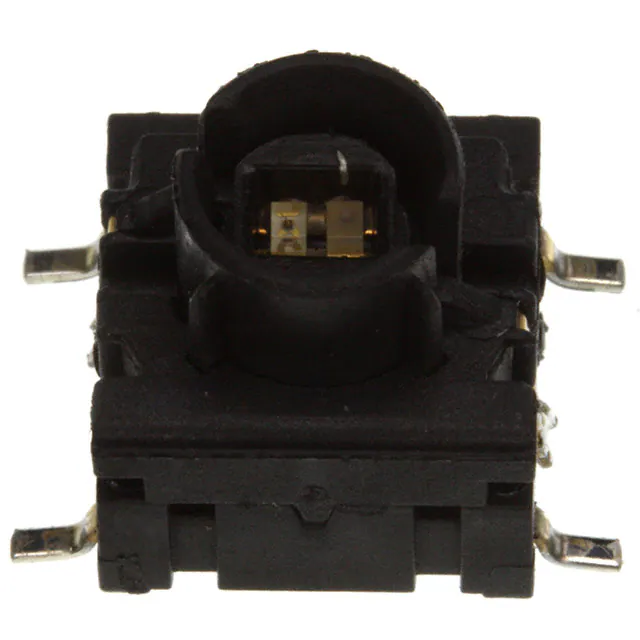

4FSH98222SWITCH TACTILE SPST-NO 0.05A 24V |
712 |
|
Datasheet |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green/Red | 300gf | 2.0, 2.2 VDC | Sealed - Flux Protection | -30°C ~ 85°C |
|
JB15HBPF-JBSWITCH TACT SPST-NO 0.125A 24V |
1,237 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 265gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
JB15HLPF-JBSWITCH TACT SPST-NO 0.125A 24V |
3,491 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 265gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HLPF-JFSWITCH TACT SPST-NO 0.125A 24V |
4,767 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 265gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
JB15HBPF-JFSWITCH TACT SPST-NO 0.125A 24V |
125 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 265gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
JB15HBPE-JBSWITCH TACT SPST-NO 0.125A 24V |
510 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 265gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
3FTH946SWITCH TACTILE SPST-NO 0.05A 24V |
323 |
|
Datasheet |
Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 300gf | 2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|
1.14.001.551/0000SWITCH TACTILE SPST-NO 0.1A 42V |
103 |
|
Datasheet |
RACON 12 I | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.1A @ 42VAC/DC | - | Top Actuated | PC Pin | 11.35mm x 11.35mm | Illuminated | - | LED, Red | 330gf | 1.8 VDC | - | -40°C ~ 80°C |
|

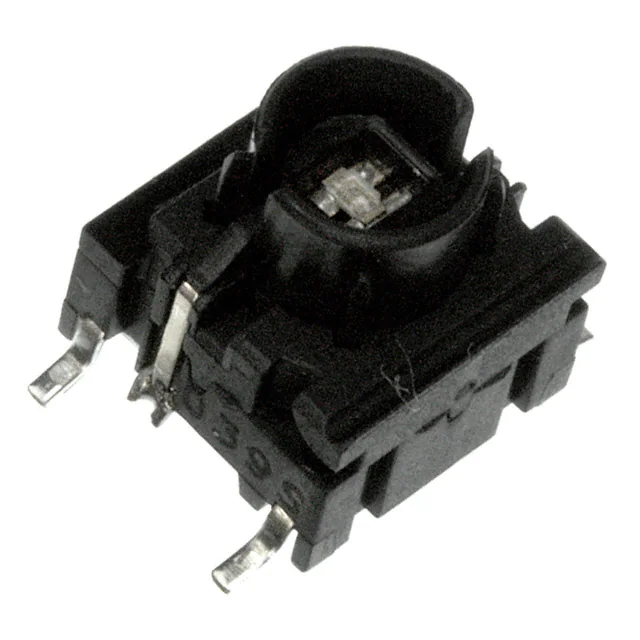

4FSH901SWITCH TACTILE SPST-NO 0.05A 24V |
2,572 |
|
Datasheet |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Blue | 300gf | 3.35 VDC | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
TL1275CA2WA500QPRSWITCH TACTILE SPST-NO 0.05A 12V |
522 |
|
Datasheet |
TL1275 | Tray | Active | SPST-NO | Off-Mom | Flush | Panel Mount | 1.60mm | 0.05A @ 12VDC | - | Top Actuated | Wire Leads with Connector | 19.00mm Dia | Illuminated | - | LED, Red | 350gf | - | - | -25°C ~ 70°C |
|
TL1275CA2WA500QPBSWITCH TACTILE SPST-NO 0.05A 12V |
832 |
|
Datasheet |
TL1275 | Tray | Active | SPST-NO | Off-Mom | Flush | Panel Mount | 1.60mm | 0.05A @ 12VDC | - | Top Actuated | Wire Leads with Connector | 19.00mm Dia | Illuminated | - | LED, Blue | 350gf | - | - | -25°C ~ 70°C |
|

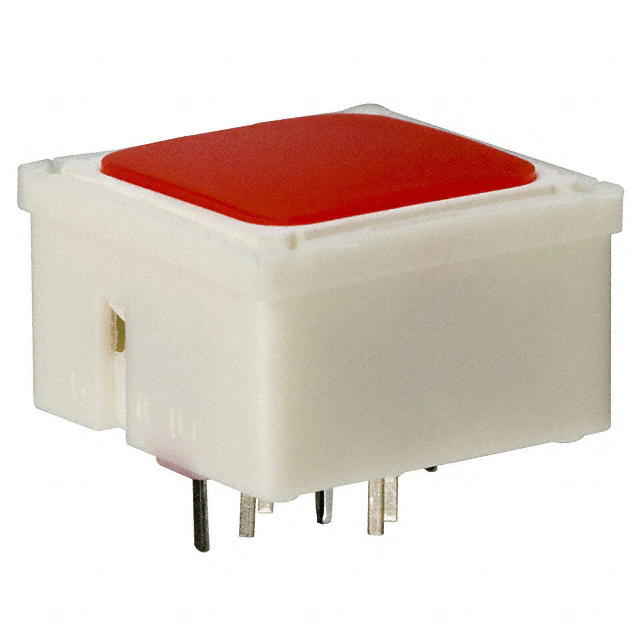

3.14.200.011/0000SWITCH TACTILE SPST-NO 0.1A 35V |
122 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | - | LED, Red | 296gf | - | - | -25°C ~ 70°C |
|

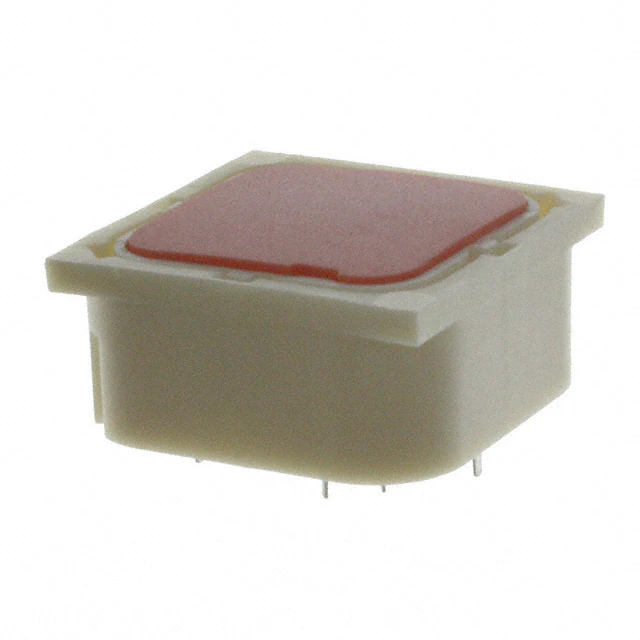

3.14.002.011/0000SWITCH TACTILE SPST-NO 0.1A 42V |
275 |
|
Datasheet |
RF19 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.1A @ 42VAC/DC | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | - | LED, Red | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|

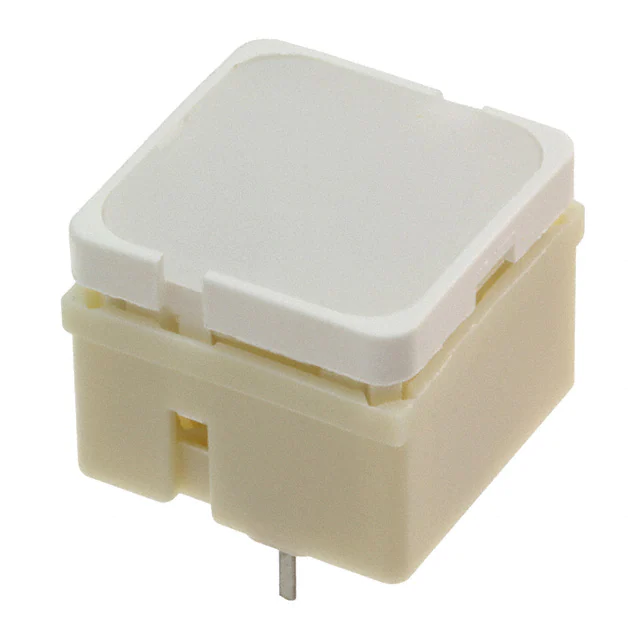

3.14.200.735/0000SWITCH TACTILE SPST-NO 0.1A 35V |
148 |
|
Datasheet |
RF15H | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 12.50mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | - | LED, White | 296gf | - | - | -25°C ~ 70°C |
|
EVQ-Q2503WSWITCH TACTILE SPST-NO 0.02A 15V |
4,000 |
|
Datasheet |
EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.02A @ 15VDC | - | Top Actuated | SMD (SMT) Tab | 6.50mm x 6.00mm | Non-Illuminated | - | - | 265gf | - | - | -40°C ~ 85°C |
|
TS02-66-153-BK-100-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
3,729 |
|
Datasheet |
TS02 | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 15.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
TS01-66-73-BK-100-DSWITCH TACTILE SPST-NO 0.05A 12V |
3,814 |
|
Datasheet |
TS01 | Bag | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
|
PTS645VJK61-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
7,767 |
|
Datasheet |
PTS645 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 12VDC | 6.15mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
TL1105F160QWITHSTRAIGHTSWITCH TACTILE SPST-NO 0.05A 12V |
2,110 |
|
Datasheet |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
CT11024.3F100SWITCH TACTILE SPST-NO 0.05A 50V |
8,977 |
|
Datasheet |
CT1102 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 4.30mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
