General Description

The DRV134 and its companion DRV135 are precision differential output amplifiers designed to convert unbalanced input signals into balanced outputs. These devices integrate high-performance op amps with on-chip laser-trimmed precision resistors that ensure accurate gain and excellent common-mode rejection (CMR).

With a wide output voltage swing and high slew rate, the DRV134PA delivers superior AC performance, driving long cables and capacitive loads without distortion. When used with the INA134 or INA137 differential receivers, it forms a complete, low-noise signal chain for balanced audio transmission.

The DRV134PA comes in a 8-pin DIP package, ideal for through-hole assembly and prototyping environments. It operates across a wide temperature range from −40°C to +85°C and is fully specified for industrial and audio applications that demand precision and reliability.

Key Features

• Balanced Output: Converts unbalanced input into differential balanced output
• Ultra-Low Distortion: 0.0005% at 1 kHz ensures exceptional audio clarity
• High Slew Rate: 15 V/µs for fast, accurate transient response
• Wide Output Swing: ±17 Vrms into 600 Ω loads
• Wide Supply Range: ±4.5 V to ±18 V
• Low Quiescent Current: ±5.2 mA typical
• Drives long cable runs and high capacitive loads without signal degradation
• Compatible with INA134 and INA137 differential receivers
• Improved drop-in replacement for SSM2142
• Available in DIP-8, SO-8, and SOL-16 packages

Applications

• Professional audio differential line drivers
• Audio mixing consoles and studio gear
• Broadcast and distribution amplifiers
• Parametric and graphic equalizers
• Dynamic range and digital effects processors
• High-fidelity (Hi-Fi) audio systems
• Telecommunication systems
• Industrial instrumentation and control equipment

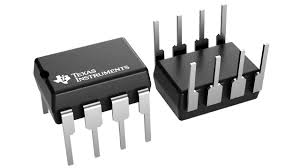

Package Information

Package Type: 8-pin DIP (Through-Hole)
Body Size (Nominal): 9.80 mm × 6.35 mm
Operating Temperature: −40°C to +85°C
Manufacturer: Texas Instruments
Part Number: DRV134PA

Advantages

• Provides clean, balanced signal transmission with high common-mode noise rejection
• Ultra-low noise and distortion suitable for high-end and studio applications
• Rugged through-hole package for reliable assembly
• Ideal for analog signal balancing in long-distance connections
• Seamless integration with TI differential receiver ICs (INA134, INA137)

FAQs

What is the DRV134PA used for?

The DRV134PA is used to convert single-ended audio signals into balanced outputs, reducing noise and distortion in professional audio systems.

Can the DRV134PA replace the SSM2142?

Yes. The DRV134PA is a direct, improved replacement for the SSM2142, offering lower distortion, better linearity, and higher slew rate.

Is the DRV134 suitable for industrial applications?

Absolutely. With a wide supply range and industrial temperature rating, it performs reliably in both audio and instrumentation systems.
