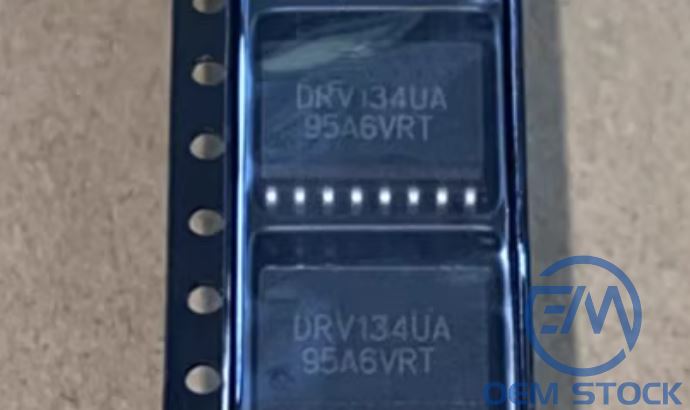

Texas Instruments DRV134UASell Excess Inventory

The DRV134UA from Texas Instruments is a professional-grade differential audio line driver that converts single-ended audio inputs into balanced outputs with exceptional accuracy and low distortion. Designed for studio, broadcasting, and industrial systems, this precision amplifier delivers outstanding signal integrity across long cable runs. Available now at OEMSTOCK with fast global delivery and verified quality.

General Description

The DRV134 family consists of high-performance differential output amplifiers optimized for professional and Hi-Fi audio systems. Each device integrates a precision operational amplifier with laser-trimmed on-chip resistors to ensure accurate gain, low distortion, and superior common-mode rejection ratio (CMRR).

The DRV134UA operates from a ±4.5 V to ±18 V supply and features a high slew rate of 15 V/µs, allowing it to drive long audio cables or capacitive loads without signal degradation. When paired with the INA134 or INA137 differential line receivers, it forms a complete, noise-free balanced transmission system ideal for professional and industrial environments.

Packaged in a compact SOIC-8 (SO-8) form factor, the DRV134UA supports operating temperatures from −40°C to +85°C, ensuring robust and stable performance in demanding conditions.

Key Features

• Balanced Output: Converts unbalanced input to differential balanced output
• Ultra-Low Distortion: 0.0005% at 1 kHz
• High Slew Rate: 15 V/µs for accurate transient response
• Wide Output Swing: ±17 Vrms into 600 Ω
• Wide Supply Range: ±4.5 V to ±18 V
• Low Quiescent Current: ±5.2 mA typical
• Drives long audio cables and capacitive loads
• Companion to INA134 / INA137 differential receivers
• Improved direct replacement for SSM2142
• Available in DIP-8, SO-8, and SOL-16 packages

Applications

• Professional audio differential line drivers
• Mixing consoles and broadcast equipment
• Distribution and PA amplifiers
• Graphic and parametric equalizers
• Dynamic range and effects processors
• Hi-Fi and home theater systems
• Telecommunication signal interfaces
• Industrial measurement and control systems

Package Information

Package Type: SOIC-8 (SO-8) Surface Mount
Body Size (Nominal): 4.90 mm × 3.91 mm
Operating Temperature: −40°C to +85°C
Manufacturer: Texas Instruments
Part Number: DRV134UA

Advantages

• Ensures clean, balanced signal transmission with high CMRR
• Low noise and distortion for professional-grade audio fidelity
• Compact SOIC-8 package suitable for modern PCB designs
• Excellent for analog signal balancing in long-distance systems
• Reliable solution supported by OEMSTOCK's verified supply chain

FAQs

What is the DRV134UA used for?

The DRV134UA is used to convert single-ended analog signals into balanced outputs for professional audio, broadcast, or industrial communication systems.

What is the difference between DRV134 and DRV135?

The DRV134 provides two balanced outputs (dual channel) in a 16-pin package, while the DRV135 is a single-channel version in an 8-pin SOIC package.

Can the DRV134UA replace the SSM2142?

Yes. It is a direct drop-in, improved replacement for the SSM2142 with better distortion characteristics, higher slew rate, and extended supply voltage range.

Related Products

• DRV135UA/2K5 – Single-Channel Differential Line Driver
• INA134 – Precision Differential Line Receiver
• INA137 – Low-Power Audio Receiver
